vcl::edgemesh::Edge< Scalar, I > Class Template Reference

The Edge type used by the EdgeMeshT class. More...

#include <vclib/meshes/edge_mesh.h>

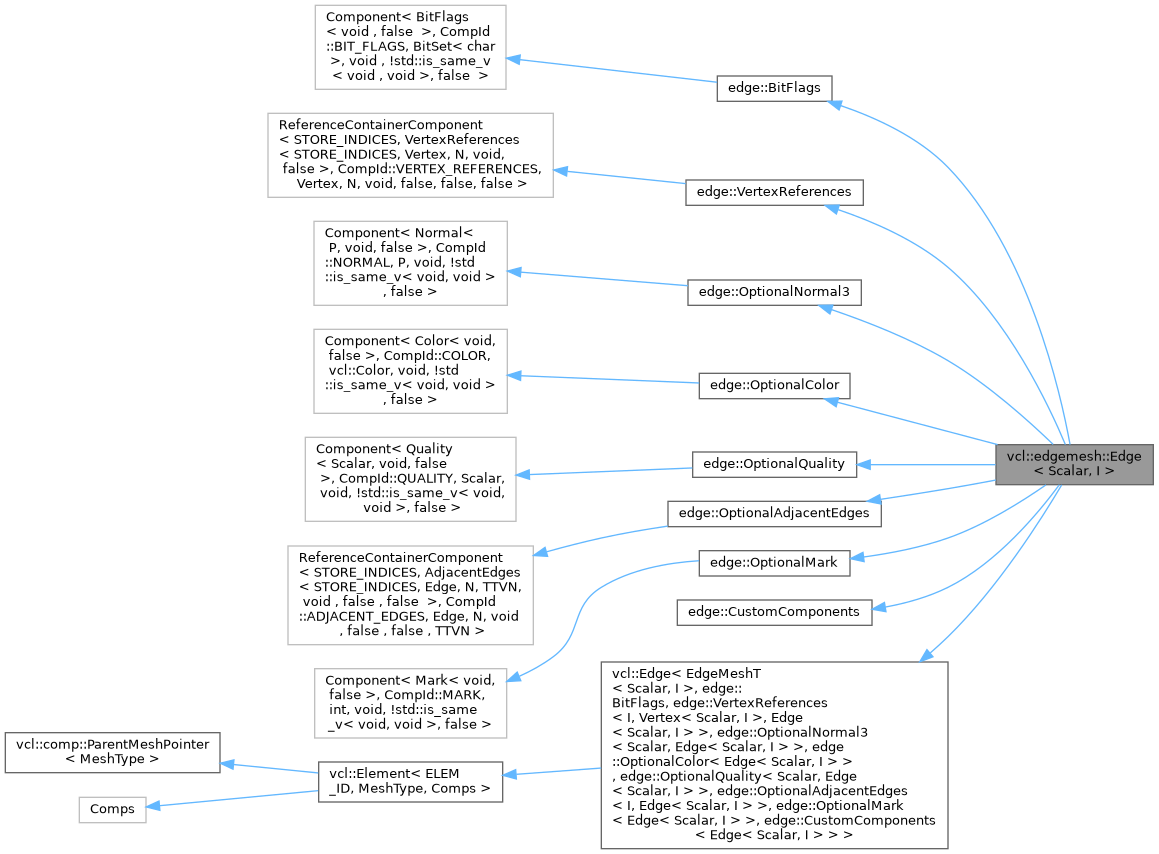

Inheritance diagram for vcl::edgemesh::Edge< Scalar, I >:

Additional Inherited Members
Public Types inherited from vcl::comp::VertexReferences< STORE_INDICES, Vertex, N, ParentElemType, VERT >
using	ConstVertexIndexIterator = Base::ConstIndexIterator
using	ConstVertexIterator = Base::ConstIterator
using	VertexIterator = Base::Iterator
using	VertexType = Vertex
	Expose the type of the Vertex.
Public Types inherited from vcl::comp::Normal< P, ParentElemType, OPT >
using	NormalType = P
	Expose the type of the Normal.
Public Types inherited from vcl::comp::Color< ParentElemType, OPT >
using	ColorType = vcl::Color
	Expose the type of the Color.
Public Types inherited from vcl::comp::Quality< Scalar, ParentElemType, OPT >
using	QualityType = Scalar
	Exposes the scalar used as Quality type.
Public Types inherited from vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >
using	AdjacentEdgeIterator = Base::Iterator
using	AdjacentEdgeType = Edge
	Expose the type of the Adjacent Edge.
using	ConstAdjacentEdgeIndexIterator = Base::ConstIndexIterator
using	ConstAdjacentEdgeIterator = Base::ConstIterator
Public Types inherited from vcl::Edge< EdgeMeshT< Scalar, I >, edge::BitFlags, edge::VertexReferences< I, Vertex< Scalar, I >, Edge< Scalar, I > >, edge::OptionalNormal3< Scalar, Edge< Scalar, I > >, edge::OptionalColor< Edge< Scalar, I > >, edge::OptionalQuality< Scalar, Edge< Scalar, I > >, edge::OptionalAdjacentEdges< I, Edge< Scalar, I > >, edge::OptionalMark< Edge< Scalar, I > >, edge::CustomComponents< Edge< Scalar, I > > >
using	VertexType = VRefs::VertexType
Public Types inherited from vcl::Element< ELEM_ID, MeshType, Comps >
using	Components = TypeWrapper< Comps... >
	Components is an alias to a vcl::TypeWrapper that wraps all the Components from which the Element inherits (Comps).
using	ParentMeshType = MeshType
Public Types inherited from vcl::comp::ParentMeshPointer< MeshType >
using	ParentMeshType = MeshType
Public Member Functions inherited from vcl::comp::BitFlags< ParentElemType, OPT >
	BitFlags ()
	Initializes the bits to false.
bool	deleted () const
	Returns whether the current Element is deleted or not.
int	exportFlagsToVCGFormat () const
	Returns the bit flags of this element in the format of the VCG library.
void	importFlagsFromVCGFormat (int f)
	Sets all the flags of this element to the values contained in the integer input parameter, that represents the bit flags of the VCG library.
BitProxy< FT >	onBorder ()
	Accesses the 'onBorder' bit of this Element, returning a reference to it.
bool	onBorder () const
	Returns whether the current Element is on border or not.
void	resetBitFlags ()
	Unsets all the flags of this Element and sets them to false, except the deleted flag, which needs to be manually reset.
BitProxy< FT >	selected ()
	Accesses the 'selected' bit of this Element, returning a reference to it.
bool	selected () const
	Returns whether the current Element is selected or not.
BitProxy< FT >	userBit (uint bit)
	Returns the boolean value of the user bit of this Element given in input. The bit is checked to be less than the total number of assigned user bits, which in this class is 4.
bool	userBit (uint bit) const
	Returns a reference to the value of the user bit of this Element given in input. The bit is checked to be less than the total number of assigned user bits, which in this class is 4.
BitProxy< FT >	visited ()
	Accesses the 'visited' bit of this Element, returning a reference to it.
bool	visited () const
	Returns whether the current Element has been visited or not.
Public Member Functions inherited from vcl::comp::VertexReferences< STORE_INDICES, Vertex, N, ParentElemType, VERT >
void	clearVertices ()
	Clears the container of vertices, making it empty.
bool	containsVertex (const Vertex *v) const
	Returns true if the container of vertices contains the given vertex, false otherwise.
bool	containsVertex (uint vi) const
	Returns true if the container of vertices contains the vertex with the given index, false otherwise.
void	eraseVertex (uint i)
	Removes the vertex at the given position from the container.
uint	indexOfEdge (const Vertex *v1, const Vertex *v2) const
	Returns the index of the given edge composed of the two vertices v1 and v2 in the container of the element.
uint	indexOfEdge (uint vi1, uint vi2) const
	Returns the index of the edge composed of the two vertices with the given indices in the container of the element.
uint	indexOfVertex (const Vertex *v) const
	Returns the index of the given vertex in the container of the element. If the given vertex is not in the container, returns UINT_NULL.
uint	indexOfVertex (uint vi) const
	Returns the index of the vertex with the given index in the container of the element. If the vertex with the given index is not in the container, returns UINT_NULL.
void	insertVertex (uint i, uint vi)
	Inserts the vertex with the given index in the container at the given position.
void	insertVertex (uint i, Vertex *v)
	Inserts the given vertex in the container at the given position.
void	pushVertex (uint vi)
	Pushes in the back of the container the given vertex.
void	pushVertex (Vertex *v)
	Pushes in the back of the container the given vertex.
void	resizeVertices (uint n)
	Resize the container of the vertices to the given size.
void	setVertex (ConstVertexIndexIterator it, uint vi)
	Sets the vertex pointed by the iterator.
void	setVertex (ConstVertexIndexIterator it, Vertex *v)
	Sets the vertex pointed by the iterator.
void	setVertex (ConstVertexIterator it, uint vi)
	Sets the vertex pointed by the iterator.
void	setVertex (ConstVertexIterator it, Vertex *v)
	Sets the vertex pointed by the iterator.
void	setVertex (uint i, uint vi)
	Sets the i-th vertex of the element.
void	setVertex (uint i, Vertex *v)
	Sets the i-th vertex of the element.
void	setVertexMod (int i, uint vi)
	Sets the i-th vertex of the element, but using as index the module between i and the number of vertices. You can use this function if you need to set the "next vertex after position k", without check if it is less than the number of vertices. Works also for negative numbers:
void	setVertexMod (int i, Vertex *v)
	Sets the i-th vertex of the element, but using as index the module between i and the number of vertices. You can use this function if you need to set the "next vertex after position k", without check if it is less than the number of vertices. Works also for negative numbers:
template<Range Rng> requires InputRange<Rng, Vertex*>
void	setVertices (Rng &&r)
	Sets all the vertex pointers of the element.
template<Range Rng> requires InputRange<Rng, uint>
void	setVertices (Rng &&r)
	Sets all the vertex pointers of the element.
Vertex *	vertex (uint i)
	Returns the pointer to the i-th vertex of the element.
const Vertex *	vertex (uint i) const
	Returns a const pointer to the i-th vertex of the element.
VertexIterator	vertexBegin ()
	Returns an iterator to the first vertex in the container of this component.
ConstVertexIterator	vertexBegin () const
	Returns a const iterator to the first vertex in the container of this component.
VertexIterator	vertexEnd ()
	Returns an iterator to the end of the container of this component.
ConstVertexIterator	vertexEnd () const
	Returns a const iterator to the end of the container of this component.
uint	vertexIndex (uint i) const
	Returns the index in the vertex container of the i-th vertex of the element.
ConstVertexIndexIterator	vertexIndexBegin () const
	Returns an iterator to the first vertex index in the container of this component.
ConstVertexIndexIterator	vertexIndexEnd () const
	Returns an iterator to the end of the container of this component.
uint	vertexIndexMod (int i) const
	Returns the index in the vertex container of the i-th vertex of the element, but using as index the module between i and the number of vertices. You can use this function if you need to get the "index of the vertex next to position k", without check if it is less than the number of vertices. Works also for negative numbers:
View< ConstVertexIndexIterator >	vertexIndices () const
	Returns a lightweight view object that stores the begin and end iterators of the container of vertex indices of the element. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:
Vertex *	vertexMod (int i)
	Returns a reference of the pointer to the i-th vertex of the element, but using as index the module between i and the number of vertices. You can use this function if you need to get the "next vertex after position k", without check if it is less than the number of vertices. Works also for negative numbers:
const Vertex *	vertexMod (int i) const
	Same of vertexMod, but returns a const pointer to the vertex.
uint	vertexNumber () const
	Returns the number of vertices of the element.
	VertexReferences ()=default
	Empty constructor.
View< VertexIterator >	vertices ()
	Returns a lightweight view object that stores the begin and end iterators of the container of vertices of the element. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:
View< ConstVertexIterator >	vertices () const
	Returns a lightweight const view object that stores the begin and end iterators of the container of vertices of the element. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:
Public Member Functions inherited from vcl::comp::Normal< P, ParentElemType, OPT >
P &	normal ()
	Returns a reference of the normal of the element.
const P &	normal () const
	Returns a const reference of the normal of the element.
	Normal ()=default
	Initilizes the Normal to (0, 0, 0).
Public Member Functions inherited from vcl::comp::Color< ParentElemType, OPT >
vcl::Color &	color ()
	Returns a reference pf the color of the element.
const vcl::Color &	color () const
	Returns a const reference of the color of the element.
	Color ()=default
	Initilizes the color to black (with alpha 255).
Public Member Functions inherited from vcl::comp::Quality< Scalar, ParentElemType, OPT >
QualityType &	quality ()
	Returns a reference of the quality of the element.
const QualityType &	quality () const
	Returns a const reference of the quality of the element.
	Quality ()=default
	Initilizes the Quality value to 0.
Public Member Functions inherited from vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >
	AdjacentEdges ()=default
	Empty constructor.
Edge *	adjEdge (uint i)
	Returns the pointer to the i-th adjacent edge of the element.
const Edge *	adjEdge (uint i) const
	Returns a const pointer to the i-th adjacent edge of the element.
AdjacentEdgeIterator	adjEdgeBegin ()
	Returns an iterator to the first adjacent edge in the container of this component.
ConstAdjacentEdgeIterator	adjEdgeBegin () const
	Returns a const iterator to the first adjacent edge in the container of this component.
AdjacentEdgeIterator	adjEdgeEnd ()
	Returns an iterator to the end of the container of this component.
ConstAdjacentEdgeIterator	adjEdgeEnd () const
	Returns a const iterator to the end of the container of this component.
uint	adjEdgeIndex (uint i) const
	Returns the index in the edge container of the i-th adjacent edge of the element.
ConstAdjacentEdgeIndexIterator	adjEdgeIndexBegin () const
	Returns an iterator to the first adjacent edge index in the container of this component.
ConstAdjacentEdgeIndexIterator	adjEdgeIndexEnd () const
	Returns an iterator to the end of the container of this component.
uint	adjEdgeIndexMod (int i) const
	Returns the index in the edge container of the i-th adjacent edge of the element, but using as index the module between i and the number of adjacent edges. You can use this function if you need to get the "index of the adjacent edge next to position k", without check if it is less than the number of adjacent edges. Works also for negative numbers:
View< ConstAdjacentEdgeIndexIterator >	adjEdgeIndices () const
	Returns a lightweight view object that stores the begin and end iterators of the container of adjacent edge indices of the element. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:
Edge *	adjEdgeMod (int i)
	Returns the pointer to the i-th adjacent edge of the element but using as index the module between i and the number of adjacent edges. You can use this function if you need to get the "next adjacent edge after position k", without check if it is less than the number of adj edges. Works also for negative numbers:
const Edge *	adjEdgeMod (int i) const
	Same of adjEdgeMod, but returns a const Pointer to the adjacent edge.
View< AdjacentEdgeIterator >	adjEdges ()
	Returns a lightweight view object that stores the begin and end iterators of the container of adjacent edges of the element. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:
View< ConstAdjacentEdgeIterator >	adjEdges () const
	Returns a lightweight const view object that stores the begin and end iterators of the container of adjacent edges of the element. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:
uint	adjEdgesNumber () const
	Returns the number of adjacent edges of this element.
void	clearAdjEdges ()
	Clears the container of adjacent edges, making it empty.
bool	containsAdjEdge (const Edge *e) const
	Returns true if the container of adjacent edges contains the given edge, false otherwise.
bool	containsAdjEdge (uint ei) const
	Returns true if the container of adjacent edges contains the given index, false otherwise.
void	eraseAdjEdge (uint i)
	Removes the adjacent edge at the given position from the container.
uint	indexOfAdjEdge (const Edge *e) const
	Returns the index of the given adjacent edge in the container of the element. If the given adjacent edge is not in the container, returns UINT_NULL.
uint	indexOfAdjEdge (uint ei) const
	Returns the index of the adjacent edge with the given index in the container of the element. If the adjacent edge with the given index is not in the container, returns UINT_NULL.
void	insertAdjEdge (uint i, Edge *e)
	Inserts the given adjacent edge in the container at the given position.
void	insertAdjEdge (uint i, uint ei)
	Inserts the adjacent edge with the given index in the container at the given position.
void	pushAdjEdge (Edge *e)
	Pushes in the back of the container the given adjacent edge.
void	pushAdjEdge (uint ei)
	Pushes in the back of the container the given adjacent edge.
void	resizeAdjEdges (uint n)
	Resize the container of the adjacent edges to the given size.
void	setAdjEdge (ConstAdjacentEdgeIndexIterator it, Edge *e)
	Sets the adjacent edge pointed by the iterator.
void	setAdjEdge (ConstAdjacentEdgeIndexIterator it, uint ei)
	Sets the adjacent edge pointed by the iterator.
void	setAdjEdge (ConstAdjacentEdgeIterator it, Edge *e)
	Sets the adjacent edge pointed by the iterator.
void	setAdjEdge (ConstAdjacentEdgeIterator it, uint ei)
	Sets the adjacent edge pointed by the iterator.
void	setAdjEdge (uint i, Edge *e)
	Sets the i-th adjacent edge of the element.
void	setAdjEdge (uint i, uint ei)
	Sets the i-th adjacent edge of the element.
void	setAdjEdgeMod (int i, Edge *e)
	Sets the i-th adjacent edge of the element, but using as index the module between i and the number of adjacent edges. You can use this function if you need to set the "next adjacent edge after position k", without check if it is less than the number of adjacent edges. Works also for negative numbers:
void	setAdjEdgeMod (int i, uint ei)
	Sets the i-th adjacent edge of the element, but using as index the module between i and the number of adjacent edges. You can use this function if you need to set the "next adjacent edge after position k", without check if it is less than the number of adjacent edges. Works also for negative numbers:
template<Range Rng> requires InputRange<Rng, Edge*>
void	setAdjEdges (Rng &&r)
	Sets all the adjacent edges of the element.
template<Range Rng> requires InputRange<Rng, uint>
void	setAdjEdges (Rng &&r)
	Sets all the adjacent edges of the element.
Public Member Functions inherited from vcl::comp::Mark< ParentElemType, OPT >
void	decrementMark ()
	Decrements the mark of the current element/mesh by 1.
template<typename E >
bool	hasSameMark (const E &e) const
	Checks if the current element/mesh has the same mark of the given input element/mesh e.
void	incrementMark ()
	Increments the mark of the current element/mesh by 1.
	Mark ()
	Constructor that initializes the mark to 0.
int	mark () const
	Returns the value of the mark.
void	resetMark ()
	Resets the mark to 0.
Public Member Functions inherited from vcl::comp::CustomComponents< ParentElemType >
template<typename CompType > requires (!IS_VERTICAL)
void	addCustomComponent (const std::string &compName, const CompType &value=CompType())
template<typename CompType >
CompType &	customComponent (const std::string &compName)
	Returns the reference to the custom component of the given name having the type given as template argument.
template<typename CompType >
const CompType &	customComponent (const std::string &compName) const
	Returns the const reference to the custom component of the given name having the type given as template argument.
template<typename CompType >
std::vector< std::string >	customComponentNamesOfType () const
	Returns a std::vector of std::strings containing the names of the custom components of the type given as template argument.
	CustomComponents ()=default
	Initilizes an empty container of custom components.
std::type_index	customComponentType (const std::string &compName) const
	Returns the std::type_index of the custom component of the given name.
void	deleteCustomComponent (const std::string &compName)
template<typename CompType > requires (!IS_VERTICAL)
void	deserializeCustomComponentsOfType (std::istream &is)
bool	hasCustomComponent (const std::string &compName) const
	Returns true if the element has a custom component with the given name, false otherwise. The type of the custom component is not checked.
template<typename CompType >
bool	isCustomComponentOfType (const std::string &compName) const
	Returns true if the custom component of the given name is of the type given as template argument, false otherwise.
template<typename CompType > requires (!IS_VERTICAL)
void	serializeCustomComponentsOfType (std::ostream &os) const
Public Member Functions inherited from vcl::Edge< EdgeMeshT< Scalar, I >, edge::BitFlags, edge::VertexReferences< I, Vertex< Scalar, I >, Edge< Scalar, I > >, edge::OptionalNormal3< Scalar, Edge< Scalar, I > >, edge::OptionalColor< Edge< Scalar, I > >, edge::OptionalQuality< Scalar, Edge< Scalar, I > >, edge::OptionalAdjacentEdges< I, Edge< Scalar, I > >, edge::OptionalMark< Edge< Scalar, I > >, edge::CustomComponents< Edge< Scalar, I > > >
	Edge ()=default
	Empty constructor.
void	setVertices (uint vi0, uint vi1)
	Sets the vertices of the edge.
void	setVertices (VertexType *v0, VertexType *v1)
	Sets the vertices of the edge.
Public Member Functions inherited from vcl::Element< ELEM_ID, MeshType, Comps >
template<uint COMP_ID>
auto &	component ()
template<uint COMP_ID>
const auto &	component () const
void	deserialize (std::istream &in)
template<typename ElType >
void	importFrom (const ElType &v, bool importRefs=true)
uint	index () const
void	serialize (std::ostream &out) const
Public Member Functions inherited from vcl::comp::ParentMeshPointer< MeshType >
ParentMeshPointer &	operator= (const ParentMeshPointer< MeshType > &)
constexpr MeshType *	parentMesh ()
constexpr const MeshType *	parentMesh () const
	ParentMeshPointer (const ParentMeshPointer< MeshType > &)
	ParentMeshPointer (ParentMeshPointer< MeshType > &&)
Static Public Attributes inherited from vcl::comp::BitFlags< ParentElemType, OPT >
static const uint	USER_BITS_NUMBER = sizeof(FT) * 8 - FIRST_USER_BIT
	Static number of bits that can have custom meanings to the user.
Static Public Attributes inherited from vcl::comp::VertexReferences< STORE_INDICES, Vertex, N, ParentElemType, VERT >
static const bool	INDEXED = STORE_INDICES
static const int	VERTEX_NUMBER = Base::SIZE
Static Public Attributes inherited from vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >
static const int	ADJ_EDGE_NUMBER = Base::SIZE
	Static size of the container. If the container is dynamic, this value will be negative and you should use the adjEdgesNumber() member function.
Static Public Attributes inherited from vcl::comp::CustomComponents< ParentElemType >
static const uint	COMPONENT_ID = CompId::CUSTOM_COMPONENTS
	The ID of component.
Static Public Attributes inherited from vcl::Element< ELEM_ID, MeshType, Comps >
static const uint	ELEMENT_ID = ELEM_ID
Protected Member Functions inherited from vcl::comp::BitFlags< ParentElemType, OPT >
BitProxy< FT >	deletedBit ()
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::VertexReferences< STORE_INDICES, Vertex, N, ParentElemType, VERT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool importRefs=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::Normal< P, ParentElemType, OPT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::Color< ParentElemType, OPT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::Quality< Scalar, ParentElemType, OPT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool importRefs=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::Mark< ParentElemType, OPT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::CustomComponents< ParentElemType >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::ParentMeshPointer< MeshType >
void	setParentMesh (void *parentMesh)

Detailed Description

template<typename Scalar, bool I>
class vcl::edgemesh::Edge< Scalar, I >

The Edge type used by the EdgeMeshT class.

Template Parameters

Scalar	The scalar type used for the mesh.
I	A boolean flag that indicates whether the mesh uses indices or pointers to store vertices of edges and adjacency information.

---

The documentation for this class was generated from the following file:

• vclib/core/include/vclib/meshes/edge_mesh.h
