vcl::EdgeMeshT< Scalar, INDEXED > Class Template Reference

The EdgeMeshT class is a mesh class that represents a mesh that stores only vertices and edges (no faces). More...

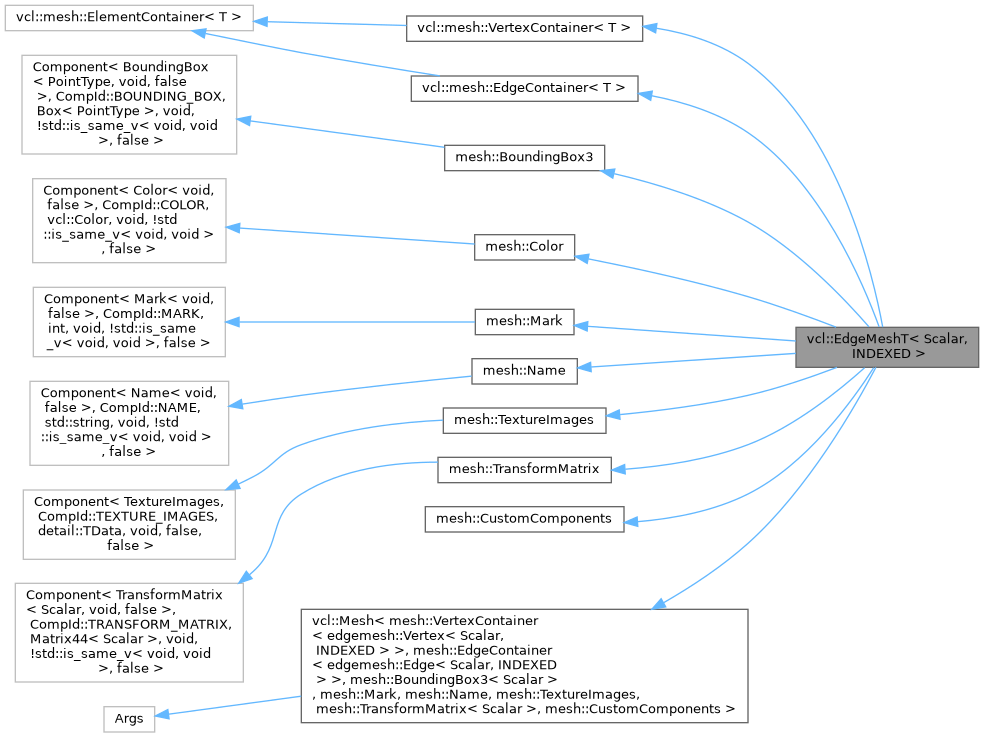

Inheritance diagram for vcl::EdgeMeshT< Scalar, INDEXED >:

Public Types
using	ScalarType = Scalar
	The scalar used to store all the data of the Mesh.
Public Types inherited from vcl::mesh::VertexContainer< T >
using	ConstVertexIterator = Base::ConstElementIterator
using	Vertex = T
using	VertexIterator = Base::ElementIterator
using	VertexType = T
Public Types inherited from vcl::mesh::EdgeContainer< T >
using	ConstEdgeIterator = Base::ConstElementIterator
using	Edge = T
using	EdgeIterator = Base::ElementIterator
using	EdgeType = T
Public Types inherited from vcl::comp::BoundingBox< PointType, ParentElemType, OPT >
using	BoundingBoxType = Box< PointType >
	Expose the type of the bounding box.
Public Types inherited from vcl::comp::Color< ParentElemType, OPT >
using	ColorType = vcl::Color
	Expose the type of the Color.
Public Types inherited from vcl::comp::TextureImages
using	ConstTexFileNamesIterator = decltype(std::declval< const detail::TData >().pathBegin())
using	ConstTextureIterator = std::vector< Texture >::const_iterator
using	TexFileNamesIterator = decltype(std::declval< detail::TData >().pathBegin())
using	TextureIterator = std::vector< Texture >::iterator
using	TextureType = Texture
	Expose the type of the Texture.
Public Types inherited from vcl::comp::TransformMatrix< Scalar, ParentElemType, OPT >
using	TransformMatrixType = Matrix44< Scalar >
	Expose the type of the transform matrix.
Public Types inherited from vcl::Mesh< mesh::VertexContainer< edgemesh::Vertex< Scalar, INDEXED > >, mesh::EdgeContainer< edgemesh::Edge< Scalar, INDEXED > >, mesh::BoundingBox3< Scalar >, mesh::Mark, mesh::Name, mesh::TextureImages, mesh::TransformMatrix< Scalar >, mesh::CustomComponents >
using	Components = FilterTypesByCondition< comp::IsComponentPred, TypeWrapper< Args... > >::type
	Components is an alias to a vcl::TypeWrapper that wraps all the types from which the Mesh inherits (Args) that are Components (they satisfy the ComponentConcept).
using	Containers = FilterTypesByCondition< mesh::IsElementContainerPred, TypeWrapper< Args... > >::type
	Containers is a vcl::TypeWrapper that wraps all the types from which the Mesh inherits (Args) that are ElementContainers (they satisfy the ElementContainerConcept).
using	ContainerType = ContainerOfElement< ELEM_ID >::type
	ContainerType is an alias that exposes the type of the Container that stores the Element identified by the template parameter ELEM_ID.
using	ElementType = ContainerType< ELEM_ID >::ElementType
	ElementType is an alias that exposes the type of the Element identified by the template parameter ELEM_ID.

Additional Inherited Members
Public Member Functions inherited from vcl::mesh::VertexContainer< T >
template<typename K > requires vert::HasCustomComponents<T>
void	addPerVertexCustomComponent (const std::string &name)
	Adds a custom component of type K to the Vertex, having the given name.
uint	addVertex ()
	Add a new vertex into the vertex container, returning the index of the added vertex.
uint	addVertex (const typename T::PositionType &p)
	Add a new vertex with the given position into the vertex container, returning the id of the added vertex.
template<typename... VC>
uint	addVertices (const typename T::PositionType &p, const VC &... v)
	Add an arbitrary number of vertices with the given positions, returning the id of the first added vertex.
template<vcl::Range R> requires RangeOf<R, typename T::PositionType>
uint	addVertices (R &&range)
	Add an arbitrary number of vertices with the positions contained in the given range, returning the id of the first added vertex.
uint	addVertices (uint n)
	Add an arbitrary number of n vertices, returning the id of the first added vertex.
void	clearVertices ()
	Clears the Vertex container of the Mesh, deleting all the vertices.
void	compactVertices ()
	Compacts the Vertex Container, removing all the vertices marked as deleted. Vertices indices will change accordingly. The function will automatically take care of updating all the Vertex pointers contained in the Mesh.
uint	deletedVertexNumber () const
	Returns the number of deleted vertices in the Vertex container, that is vertexContainerSize() - vertexNumber().
void	deletePerVertexCustomComponent (const std::string &name)
	Deletes the custom component of the given name from the Vertex Element.
void	deleteVertex (const VertexType *v)
	Marks as deleted the given vertex, before asserting that the vertex belongs to this container.
void	deleteVertex (uint i)
	Marks as deleted the vertex with the given id.
template<typename K > requires vert::HasCustomComponents<T>
void	deserializePerVertexCustomComponentsOfType (std::istream &is)
	Deserializes in the given input stream all the custom components of the Vertex Element of type K.
void	disableAllPerVertexOptionalComponents ()
	Disables all the optional components associated to the Vertex type contained in the VertexContainer.
void	disablePerVertexAdjacentEdges ()
	Disables the Optional Adjacent Edges of the vertex.
void	disablePerVertexAdjacentFaces ()
	Disables the Optional Adjacent Faces of the vertex.
void	disablePerVertexAdjacentVertices ()
	Disables the Optional Adjacent Vertices of the vertex.
void	disablePerVertexColor ()
	Disables the Optional Color of the vertex.
void	disablePerVertexMark ()
	Container::disableVertexMark disables the Optional Mark of the vertex.
void	disablePerVertexNormal ()
	Checks if the vertex Optional PrincipalCurvature is enabled.
void	disablePerVertexPrincipalCurvature ()
	Disables the Optional PrincipalCurvature of the vertex.
void	disablePerVertexQuality ()
	Disables the Optional Quality of the vertex.
void	disablePerVertexTexCoord ()
	Disables the Optional TexCoord of the vertex.
void	enableAllPerVertexOptionalComponents ()
	Enables all the optional components associated to the Vertex type contained in the VertexContainer.
void	enablePerVertexAdjacentEdges ()
	Enables the Optional Adjacent Edges of the vertex.
void	enablePerVertexAdjacentFaces ()
	Enables the Optional Adjacent Faces of the vertex.
void	enablePerVertexAdjacentVertices ()
	Enables the Optional Adjacent Vertices of the vertex.
void	enablePerVertexColor ()
	Enables the Optional Color of the vertex.
void	enablePerVertexMark ()
	Enables the Optional Mark of the vertex.
void	enablePerVertexNormal ()
	Enables the Optional Normal of the vertex.
void	enablePerVertexPrincipalCurvature ()
	Enables the Optional PrincipalCurvature of the vertex.
void	enablePerVertexQuality ()
	Enables the Optional Quality of the vertex.
void	enablePerVertexTexCoord ()
	Enables the Optional TexCoord of the vertex.
bool	hasPerVertexCustomComponent (const std::string &name) const
	Checks if vertices have a custom component with the given name.
bool	isPerVertexAdjacentEdgesEnabled () const
	Checks if the vertex Optional Adjacent Edges component is enabled.
bool	isPerVertexAdjacentFacesEnabled () const
	Checks if the vertex Optional Adjacent Faces component is enabled.
bool	isPerVertexAdjacentVerticesEnabled () const
	Checks if the vertex Optional Adjacent Vertices component is enabled.
bool	isPerVertexColorEnabled () const
	Checks if the vertex Optional Color is enabled.
template<typename K > requires vert::HasCustomComponents<T>
bool	isPerVertexCustomComponentOfType (const std::string &name) const
	Checks if the custom component of the Vertex Element having the given name has the same type of the given template argument type of this function.
bool	isPerVertexMarkEnabled () const
	Checks if the vertex Optional Mark is enabled.
bool	isPerVertexNormalEnabled () const
	Checks if the vertex Optional Normal is enabled.
bool	isPerVertexPrincipalCurvatureEnabled () const
	Checks if the vertex Optional PrincipalCurvature is enabled.
bool	isPerVertexQualityEnabled () const
	Checks if the vertex Optional Quality is enabled.
bool	isPerVertexTexCoordEnabled () const
	Checks if the vertex Optional TexCoord is enabled.
std::vector< std::string >	perVertexCustomComponentNames () const
	Returns a vector containing all the names of the custom components of any type associated to the Vertex Element.
template<typename K > requires vert::HasCustomComponents<T>
std::vector< std::string >	perVertexCustomComponentNamesOfType () const
	Returns a vector containing all the names of the custom components associated to the Vertex Element having the same type of the given template argument type of this function.
std::type_index	perVertexCustomComponentType (const std::string &name) const
	Returns the std::type_index of the custom component of the Vertex Element having the given input name.
template<typename K > requires vert::HasCustomComponents<T>
CustomComponentVectorHandle< K >	perVertexCustomComponentVectorHandle (const std::string &name)
	Returns a vector handle to the custom component having the type K and the given name.
template<typename K > requires vert::HasCustomComponents<T>
ConstCustomComponentVectorHandle< K >	perVertexCustomComponentVectorHandle (const std::string &name) const
	Returns a const vector handle to the custom component having type K and the given name.
void	reserveVertices (uint n)
	Reserve a number of vertices in the container of Vertices. This is useful when you know (or you have an idea) of how much vertices are going to add into a newly or existing mesh. Calling this function before any add_vertex() call will avoid unuseful reallocations of the container, saving execution time.
void	resizeVertices (uint n)
	Resizes the Vertex container to contain n vertices.
template<typename K > requires vert::HasCustomComponents<T>
void	serializePerVertexCustomComponentsOfType (std::ostream &os) const
	Serializes in the given output stream all the custom components of the Vertex Element of type K.
void	updateVertexIndices (const std::vector< uint > &newIndices)
	Updates all the indices and pointers of the vertices of this container that are stored in any container of the mesh, according to the mapping stored in the newIndices vector, that tells for each old vertex index, the new vertex index.
VertexType &	vertex (uint i)
	Returns a reference of the vertex at the i-th position in the Vertex Container of the Mesh, which will be the vertex having index = i.
const VertexType &	vertex (uint i) const
	Returns a const reference of the vertex at the i-th position in the Vertex Container of the Mesh, which will be the vertex having index = i.
VertexIterator	vertexBegin (bool jumpDeleted=true)
	Returns an iterator to the beginning of the container.
ConstVertexIterator	vertexBegin (bool jumpDeleted=true) const
	Returns a const iterator to the beginning of the container.
std::vector< uint >	vertexCompactIndices () const
	Returns a vector that tells, for each actual vertex index, the new index that the vertex would have in a compacted container. For each deleted vertex index, the value of the vector will be UINT_NULL.
	VertexContainer ()=default
	Empty constructor that creates an empty container of Vertices.
uint	vertexContainerSize () const
	Returns the number of vertices (also deleted) contained in the Vertex container of the Mesh.
VertexIterator	vertexEnd ()
	Returns an iterator to the end of the container.
ConstVertexIterator	vertexEnd () const
	Returns a const iterator to the end of the container.
uint	vertexIndexIfCompact (uint i) const
	This is an utility member function that returns the index of an element if the container would be compact, that is the number of non-deleted elements before the vertex with the given index.
uint	vertexNumber () const
	Returns the number of non-deleted vertices contained in the Vertex container of the Mesh.
auto	vertices (bool jumpDeleted=true)
	Returns a small utility object that allows to iterate over the vertices of the containers, providing two member functions begin() and end().
auto	vertices (bool jumpDeleted=true) const
	Returns a small utility object that allows to iterate over the vertices of the containers, providing two member functions begin() and end().
auto	vertices (uint begin, uint end=UINT_NULL)
	Returns a view object that allows to iterate over the Vertices of the container in the given range:
auto	vertices (uint begin, uint end=UINT_NULL) const
	Returns a view object that allows to iterate over the Vertices of the container in the given range:
Public Member Functions inherited from vcl::mesh::EdgeContainer< T >
uint	addEdge ()
	Add an Edge to the container, returning its index.
uint	addEdge (typename T::VertexType *v0, typename T::VertexType *v1)
	Add an Edge having the two given vertices to the container, returning its index.
uint	addEdge (uint v0, uint v1)
	Add an Edge having the two given vertices to the container, returning its index.
uint	addEdges (uint n)
	Add an arbitrary number of n Edges, returning the id of the first added Edge.
template<typename K > requires edge::HasCustomComponents<T>
void	addPerEdgeCustomComponent (const std::string &name)
	Adds a custom component of type K to the Edge, having the given name.
void	clearEdges ()
	Clears the Edge container of the Mesh, deleting all the Edges.
void	compactEdges ()
	Compacts the EdgeContainer, removing all the Edges marked as deleted. Edges indices will change accordingly. The function will automatically take care of updating all the Edge pointers contained in the Mesh.
uint	deletedEdgeNumber () const
	Returns the number of deleted Edges in the Edge container, that is edgeContainerSize() - edgeNumber().
void	deleteEdge (const EdgeType *e)
	Marks as deleted the given Edge, before asserting that the Edge belongs to this container.
void	deleteEdge (uint i)
	Marks as deleted the Edge with the given id.
void	deletePerEdgeCustomComponent (const std::string &name)
	Deletes the custom component of the given name from the Edge Element.
template<typename K > requires edge::HasCustomComponents<T>
void	deserializePerEdgeCustomComponentsOfType (std::istream &is)
	Deserializes in the given input stream all the custom components of the Edge Element of type K.
void	disableAllPerEdgeOptionalComponents ()
	Disables all the optional components associated to the Edge type contained in the EdgeContainer.
void	disablePerEdgeAdjacentEdges ()
	Disables the Optional AdjacentEdges of the Edge.
void	disablePerEdgeAdjacentFaces ()
	Disables the Optional AdjacentFaces of the Edge.
void	disablePerEdgeColor ()
	Disables the Optional Color of the Edge.
void	disablePerEdgeMark ()
	Disables the Optional Mark of the Edge.
void	disablePerEdgeQuality ()
	Disables the Optional Quality of the Edge.
EdgeType &	edge (uint i)
	Returns a reference of the Edge at the i-th position in the Edge Container of the Mesh, which will be the Edge having index = i.
const EdgeType &	edge (uint i) const
	Returns a const reference of the Edge at the i-th position in the Edge Container of the Mesh, which will be the Edge having index = i.
EdgeIterator	edgeBegin (bool jumpDeleted=true)
	Returns an iterator to the beginning of the container.
ConstEdgeIterator	edgeBegin (bool jumpDeleted=true) const
	Returns a const iterator to the beginning of the container.
std::vector< uint >	edgeCompactIndices () const
	Returns a vector that tells, for each actual Edge index, the new index that the Edge would have in a compacted container. For each deleted Edge index, the value of the vector will be UINT_NULL.
	EdgeContainer ()=default
	Empty constructor that creates an empty container of Edges.
uint	edgeContainerSize () const
	Returns the number of Edges (also deleted) contained in the Edge container of the Mesh.
EdgeIterator	edgeEnd ()
	Returns an iterator to the end of the container.
ConstEdgeIterator	edgeEnd () const
	Returns a const iterator to the end of the container.
uint	edgeIndexIfCompact (uint i) const
	This is an utility member function that returns the index of an element if the container would be compact, that is the number of non-deleted elements before the Edge with the given index.
uint	edgeNumber () const
	Returns the number of non-deleted Edges contained in the Edge container of the Mesh.
auto	edges (bool jumpDeleted=true)
	Returns a small view object that allows to iterate over the Edges of the containers, providing two member functions begin() and end().
auto	edges (bool jumpDeleted=true) const
	Returns a small view object that allows to iterate over the Edges of the containers, providing two member functions begin() and end().
auto	edges (uint begin, uint end=UINT_NULL)
	Returns a view object that allows to iterate over the Edges of the container in the given range:
auto	edges (uint begin, uint end=UINT_NULL) const
	Returns a view object that allows to iterate over the Edges of the container in the given range:
void	enableAllPerEdgeOptionalComponents ()
	Enables all the optional components associated to the Edge type contained in the EdgeContainer.
void	enablePerEdgeAdjacentEdges ()
	Enable the Optional AdjacentEdges of the Edge.
void	enablePerEdgeAdjacentFaces ()
	Enable the Optional AdjacentFaces of the Edge.
void	enablePerEdgeColor ()
	Enable the Optional Color of the Edge.
void	enablePerEdgeMark ()
	Enable the Optional Mark of the Edge.
void	enablePerEdgeQuality ()
	Enable the Optional Quality of the Edge.
bool	hasPerEdgeCustomComponent (const std::string &name) const
	Checks if Edges have a custom component with the given name.
bool	isPerEdgeAdjacentEdgesEnabled () const
	Checks if the Edge Optional AdjacentEdges is enabled.
bool	isPerEdgeAdjacentFacesEnabled () const
	Checks if the Edge Optional AdjacentFaces is enabled.
bool	isPerEdgeColorEnabled () const
	Checks if the Edge Optional Color is enabled.
template<typename K > requires edge::HasCustomComponents<T>
bool	isPerEdgeCustomComponentOfType (const std::string &name) const
	Checks if the custom component of the Edge Element having the given name has the same type of the given template argument type of this function.
bool	isPerEdgeMarkEnabled () const
	Checks if the Edge Optional Mark is enabled.
bool	isPerEdgeQualityEnabled () const
	Checks if the Edge Optional Quality is enabled.
std::vector< std::string >	perEdgeCustomComponentNames () const
	Returns a vector containing all the names of the custom components of any type associated to the Edge Element.
template<typename K > requires edge::HasCustomComponents<T>
std::vector< std::string >	perEdgeCustomComponentNamesOfType () const
	Returns a vector containing all the names of the custom components associated to the Edge Element having the same type of the given template argument type of this function.
std::type_index	perEdgeCustomComponentType (const std::string &name) const
	Returns the std::type_index of the custom component of the Edge Element having the given input name.
template<typename K > requires edge::HasCustomComponents<T>
CustomComponentVectorHandle< K >	perEdgeCustomComponentVectorHandle (const std::string &name)
	Returns a vector handle to the custom component having the type K and the given name.
template<typename K > requires edge::HasCustomComponents<T>
ConstCustomComponentVectorHandle< K >	perEdgeCustomComponentVectorHandle (const std::string &name) const
	Returns a const vector handle to the custom component having type K and the given name.
void	reserveEdges (uint n)
	Reserve a number of Edges in the container of Edges. This is useful when you know (or you have an idea) of how much Edges are going to add into a newly of existing mesh. Calling this function before any addEdge() call will avoid unuseful reallocations of the container, saving execution time.
void	resizeEdges (uint n)
	Resizes the Edge container to contain n Edges.
template<typename K > requires edge::HasCustomComponents<T>
void	serializePerEdgeCustomComponentsOfType (std::ostream &os) const
	Serializes in the given output stream all the custom components of the Edge Element of type K.
void	updateEdgeIndices (const std::vector< uint > &newIndices)
	Updates all the indices and pointers of the Edges of this container that are stored in any container of the mesh, according to the mapping stored in the newIndices vector, that tells for each old Edge index, the new Edge index.
Public Member Functions inherited from vcl::comp::BoundingBox< PointType, ParentElemType, OPT >
BoundingBoxType &	boundingBox ()
	Returns a reference to the bounding box of this object.
const BoundingBoxType &	boundingBox () const
	Returns a const reference to the bounding box of this object.
	BoundingBox ()=default
	Initilizes the bounding box to an invalid bounding box.
Public Member Functions inherited from vcl::comp::Color< ParentElemType, OPT >
vcl::Color &	color ()
	Returns a reference pf the color of the element.
const vcl::Color &	color () const
	Returns a const reference of the color of the element.
	Color ()=default
	Initilizes the color to black (with alpha 255).
Public Member Functions inherited from vcl::comp::Mark< ParentElemType, OPT >
void	decrementMark ()
	Decrements the mark of the current element/mesh by 1.
template<typename E >
bool	hasSameMark (const E &e) const
	Checks if the current element/mesh has the same mark of the given input element/mesh e.
void	incrementMark ()
	Increments the mark of the current element/mesh by 1.
	Mark ()
	Constructor that initializes the mark to 0.
int	mark () const
	Returns the value of the mark.
void	resetMark ()
	Resets the mark to 0.
Public Member Functions inherited from vcl::comp::Name< ParentElemType, OPT >
std::string &	name ()
	Returns the name of this object.
const std::string &	name () const
	Returns the name of this object.
	Name ()=default
	Initilizes an empty name.
Public Member Functions inherited from vcl::comp::TextureImages
void	clearTexturePaths ()
	Clears the vector of textures.
void	clearTextures ()
	Clears the vector of textures.
uint	indexOfTexturePath (const std::string &path) const
	Returns the index of the texture with the given path, or UINT_NULL if the texture is not found.
std::string &	meshBasePath ()
	Returns a reference to the mesh base path.
const std::string &	meshBasePath () const
	Returns the mesh base path.
void	pushTexture (const Texture &texture)
	Adds a texture to the vector of textures.
void	pushTexturePath (const std::string &textPath)
	Adds a texture to the vector of textures. The image of the texture is left empty.
Texture &	texture (uint i)
	Returns a reference to the i-th texture of the mesh. The path of the texture is relative to the mesh base path.
const Texture &	texture (uint i) const
	Returns the i-th texture of the mesh. The path of the texture is relative to the mesh base path.
TextureIterator	textureBegin ()
	Returns an iterator to the beginning of the vector of textures.
ConstTextureIterator	textureBegin () const
	Returns a const iterator to the beginning of the vector of textures.
TextureIterator	textureEnd ()
	Returns an iterator to the end of the vector of textures.
ConstTextureIterator	textureEnd () const
	Returns a const iterator to the end of the vector of textures.
	TextureImages ()=default
	Initializes the component with an empty vector of textures and an empty string as mesh base path.
uint	textureNumber () const
	Returns the number of texture of the mesh.
std::string &	texturePath (uint i)
	Returns a reference to the path of the i-th texture of the mesh. The path is relative to the mesh base path.
const std::string &	texturePath (uint i) const
	Returns the path of the i-th texture of the mesh. The path is relative to the mesh base path.
TexFileNamesIterator	texturePathBegin ()
	Returns an iterator to the beginning of the vector of texture paths.
ConstTexFileNamesIterator	texturePathBegin () const
	Returns a const iterator to the beginning of the vector of texture paths.
TexFileNamesIterator	texturePathEnd ()
	Returns an iterator to the end of the vector of texture paths.
ConstTexFileNamesIterator	texturePathEnd () const
	Returns a const iterator to the end of the vector of texture paths.
auto	texturePaths ()
	Returns a lightweigth view object that stores the begin and end iterators of the vector of texture paths. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:
auto	texturePaths () const
	Returns a lightweigth const view object that stores the begin and end iterators of the vector of texture paths. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:
View< TextureIterator >	textures ()
	Returns a lightweigth view object that stores the begin and end iterators of the vector of textures. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:
View< ConstTextureIterator >	textures () const
	Returns a lightweigth const view object that stores the begin and end iterators of the vector of textures. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:
Public Member Functions inherited from vcl::comp::TransformMatrix< Scalar, ParentElemType, OPT >
	TransformMatrix ()
	Initializes the transform matrix to identity.
TransformMatrixType &	transformMatrix ()
	Returns a reference to the transform matrix.
const TransformMatrixType &	transformMatrix () const
	Returns a const reference to the transform matrix.
Public Member Functions inherited from vcl::comp::CustomComponents< ParentElemType >
template<typename CompType > requires (!IS_VERTICAL)
void	addCustomComponent (const std::string &compName, const CompType &value=CompType())
template<typename CompType >
CompType &	customComponent (const std::string &compName)
	Returns the reference to the custom component of the given name having the type given as template argument.
template<typename CompType >
const CompType &	customComponent (const std::string &compName) const
	Returns the const reference to the custom component of the given name having the type given as template argument.
template<typename CompType >
std::vector< std::string >	customComponentNamesOfType () const
	Returns a std::vector of std::strings containing the names of the custom components of the type given as template argument.
	CustomComponents ()=default
	Initilizes an empty container of custom components.
std::type_index	customComponentType (const std::string &compName) const
	Returns the std::type_index of the custom component of the given name.
void	deleteCustomComponent (const std::string &compName)
template<typename CompType > requires (!IS_VERTICAL)
void	deserializeCustomComponentsOfType (std::istream &is)
bool	hasCustomComponent (const std::string &compName) const
	Returns true if the element has a custom component with the given name, false otherwise. The type of the custom component is not checked.
template<typename CompType >
bool	isCustomComponentOfType (const std::string &compName) const
	Returns true if the custom component of the given name is of the type given as template argument, false otherwise.
template<typename CompType > requires (!IS_VERTICAL)
void	serializeCustomComponentsOfType (std::ostream &os) const
Public Member Functions inherited from vcl::Mesh< mesh::VertexContainer< edgemesh::Vertex< Scalar, INDEXED > >, mesh::EdgeContainer< edgemesh::Edge< Scalar, INDEXED > >, mesh::BoundingBox3< Scalar >, mesh::Mark, mesh::Name, mesh::TextureImages, mesh::TransformMatrix< Scalar >, mesh::CustomComponents >
uint	add ()
	Adds a new element of the given type into its container, returning the index of the added element in its container.
uint	add (uint n)
	Adds n new elements of the given type into its container, returning the index of the first added element in its container.
void	addPerElementCustomComponent (const std::string &name)
	Adds a custom component of type K having the given name to the Element having ID ELEM_ID.
void	append (const Mesh &m)
	Appends all the elements contained in the mesh m to this mesh.
auto	begin (bool jumpDeleted=true)
	Returns an iterator to the begining of the container of the elements having ID ELEM_ID in the mesh.
auto	begin (bool jumpDeleted=true) const
	Returns a const iterator to the begining of the container of the elements having ID ELEM_ID in the mesh.
void	clear ()
	Clears all the Elements contained in the mesh.
void	clearElements ()
	Clears the container of ELEM_ID elements the Mesh, deleting all the Elements.
void	compact ()
	Compacts all the containers of the mesh.
void	compactElements ()
	Compacts the Container of the given element, removing all the elements marked as deleted. Element indices will change accordingly. The function will automatically take care of updating all the Element pointers contained in the Mesh.
std::vector< uint >	compactIndices () const
	Returns a vector that tells, for each element of the container of ELEM_ID in the mesh, the new index of the element after the container has been compacted. For each deleted element, its position will be set to UINT_NULL.
uint	containerSize () const
	Returns the size of the container of elements of the given type in this mesh.
uint	deletedNumber () const
	Returns the number of deleted elements of the given type in this mesh.
void	deleteElement (const El &e) const
	Marks as deleted the given element from its container.
void	deleteElement (const El *e) const
	Marks as deleted the given element from its container.
void	deleteElement (uint i)
	Marks as deleted the element at the given index from its container, deduced from the template index ELEM_ID.
void	deletePerElementCustomComponent (const std::string &name)
	Deletes the custom component of the given name from the Element having ID ELEM_ID.
void	deserialize (std::istream &is)
void	deserializePerElementCustomComponentsOfType (std::istream &is)
	Deserializes the custom components of type K of the element with ID ELEM_ID.
void	disableAllOptionalComponents ()
	Disables all the optional components of the elements of the containers if the mesh.
void	disablePerElementComponent ()
	Disables the optional Component having ID COMP_ID for elements having ID ELEM_ID in the mesh.
auto &	element (uint i)
	Returns the element of the given type at the given index inside its container of this mesh.
const auto &	element (uint i) const
	Returns the element of the given type at the given index inside its container of this mesh.
auto	elements (bool jumpDeleted=true)
auto	elements (bool jumpDeleted=true) const
auto	elements (uint begin, uint end=UINT_NULL)
auto	elements (uint begin, uint end=UINT_NULL) const
	Returns a lightweight const view object that stores the begin and end const iterators of the container of the elements having ID ELEM_ID in the mesh. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:
void	enableAllOptionalComponents ()
	Enables all the optional components of the elements of the containers if the mesh.
void	enablePerElementComponent ()
	Enables the optional Component having ID COMP_ID for elements having ID ELEM_ID in the mesh.
void	enableSameOptionalComponentsOf (const OtherMeshType &m)
	Enables all the OptionalComponents of this mesh according to the Components available on the OtherMeshType m.
auto	end ()
	Returns an iterator to the end of the container of the elements having ID ELEM_ID in the mesh.
auto	end () const
	Returns a const iterator to the end of the container of the elements having ID ELEM_ID in the mesh.
bool	hasPerElementCustomComponent (const std::string &name) const
	Returns true if the Element having ID ELEM_ID has a custom component with the given name.
void	importFrom (const OtherMeshType &m)
	Imports all the components that can be imported from another type of mesh.
uint	index (const El &e) const
	Returns the index of the given element in its Container of the Mesh.
uint	index (const El *e) const
	Returns the index of the given element in its Container of the Mesh.
bool	isCompact () const
	Returns true if this mesh is compact, meaning that all its containers have no deleted elements (size == element number).
bool	isPerElementComponentEnabled () const
	Returns true if optional Component having ID COMP_ID is enabled for elements having ID ELEM_ID in the mesh.
bool	isPerElementCustomComponentOfType (const std::string &name) const
	Returns true if the Element having ID ELEM_ID has a custom component of type K with the given name.
	Mesh ()
	Empty constructor, constructs an empty mesh.
	Mesh (const Mesh &oth)
	Copy constructor of the Mesh. Will create a deep copy of the given input mesh, taking care of copying everithing and then update all the pointers.
	Mesh (Mesh &&oth)
	Move constructor, moves the given mesh into this one, without any other resource acquisition.
uint	number () const
	Returns the number of elements of the given type in this mesh.
Mesh &	operator= (Mesh oth)
	Assignment operator of the Mesh.
std::vector< std::string >	perElementCustomComponentNames () const
	Returns a vector containing all the names of the custom components of any type associated to the Element having ID ELEM_ID.
std::vector< std::string >	perElementCustomComponentNamesOfType () const
	Returns a vector containing all the names of the custom components of type K associated to the Element having ID ELEM_ID.
std::type_index	perElementCustomComponentType (const std::string &name) const
	Returns the std::type_index of the custom component having the given name associated to the Element having ID ELEM_ID.
CustomComponentVectorHandle< K >	perElementCustomComponentVectorHandle (const std::string &name)
	Returns a vector handle to the custom component of type K having the given name associated to the Element having ID ELEM_ID.
ConstCustomComponentVectorHandle< K >	perElementCustomComponentVectorHandle (const std::string &name) const
	Returns a const vector handle to the custom component of type K having the given name associated to the Element having ID ELEM_ID.
void	reserve (uint n)
	Reserves a number of elements of the given type in its container. The function does not add any element to the container, but it just reserves a number of elements that can be added without causing a reallocation of the container.
void	resize (uint n)
	Resizes the Element container to contain n Elements of type ELEM_ID.
void	serialize (std::ostream &os) const
void	serializePerElementCustomComponentsOfType (std::ostream &os) const
	Serializes the custom components of type K of the element with ID ELEM_ID.
void	swap (Mesh &m2)
	Swaps this mesh with the other input Mesh m2.
void	updateIndices (const std::vector< uint > &newIndices)
	Updates all the indices and pointers of the elements of the container of ELEM_ID in the mesh, according to the mapping stored in the newIndices vector, that tells for each old element index, the new index of the element in the same container (or UINT_NULL if the element must be left as unreferenced - useful when a vertex is deleted).
Static Public Member Functions inherited from vcl::Mesh< mesh::VertexContainer< edgemesh::Vertex< Scalar, INDEXED > >, mesh::EdgeContainer< edgemesh::Edge< Scalar, INDEXED > >, mesh::BoundingBox3< Scalar >, mesh::Mark, mesh::Name, mesh::TextureImages, mesh::TransformMatrix< Scalar >, mesh::CustomComponents >
static constexpr bool	hasContainerOf ()
	Returns true if this Mesh has a container of elements having the same Element ID of the template Element El.
static constexpr bool	hasContainerOf ()
	Returns true if this Mesh has a container of elements having the same Element ID of the template ELEM_ID.
static constexpr bool	hasPerElementComponent ()
	Returns true if this Mesh has a container of elements having the same Element ID of the template ELEM_ID and the Element of that container has a Component having the same Component ID of the template COMP_ID.
static constexpr bool	hasPerElementOptionalComponent ()
	Returns true if this Mesh has a container of elements having the same Element ID of the template ELEM_ID and the Element of that container has an Optional Component having the same Component ID of the template COMP_ID.
Static Public Attributes inherited from vcl::comp::CustomComponents< ParentElemType >
static const uint	COMPONENT_ID = CompId::CUSTOM_COMPONENTS
	The ID of component.
Protected Member Functions inherited from vcl::comp::BoundingBox< PointType, ParentElemType, OPT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::Color< ParentElemType, OPT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::Mark< ParentElemType, OPT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::Name< ParentElemType, OPT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::TextureImages
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::TransformMatrix< Scalar, ParentElemType, OPT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::CustomComponents< ParentElemType >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::Mesh< mesh::VertexContainer< edgemesh::Vertex< Scalar, INDEXED > >, mesh::EdgeContainer< edgemesh::Edge< Scalar, INDEXED > >, mesh::BoundingBox3< Scalar >, mesh::Mark, mesh::Name, mesh::TextureImages, mesh::TransformMatrix< Scalar >, mesh::CustomComponents >
void	clearContainer ()
void	compactContainer ()
void	disableAllOptionalComponentsInContainer ()
void	enableAllOptionalComponentsInContainer ()
bool	isContainerCompact () const
void	updateAllReferences (const Element *oldBase)
void	updateAllReferences (const std::vector< uint > &newIndices)
void	updateReferences (const Element *oldBase)
void	updateReferences (const Element *oldBase, const std::array< std::size_t, N > &sizes=std::array< std::size_t, 0 >(), uint offset=0)
void	updateReferences (const Element *oldBase, TypeWrapper< A... >)
void	updateReferences (const Element *oldBase, TypeWrapper< A... >, const std::array< std::size_t, N > &sizes=std::array< std::size_t, 0 >(), uint offset=0)
void	updateReferences (const std::vector< uint > &newIndices)

Detailed Description

template<typename Scalar, bool INDEXED>
class vcl::EdgeMeshT< Scalar, INDEXED >

The EdgeMeshT class is a mesh class that represents a mesh that stores only vertices and edges (no faces).

It allows to store edgemesh::Vertex and edgemesh::Edge elements.

The mesh is templated over the scalar type and a boolean flag that indicates whether the mesh uses indices to store vertices of edges and adjacency information.

Template Parameters

Scalar	The scalar type used for the mesh.
INDEXED	A boolean flag that indicates whether the mesh uses indices or pointers to store references.

---

The documentation for this class was generated from the following file:

• vclib/core/include/vclib/meshes/edge_mesh.h
