vcl::Edge< MeshType, Comps > Class Template Reference

The Edge class represents an Edge element of the vcl::Mesh class. More...

#include <vclib/mesh/elements/edge.h>

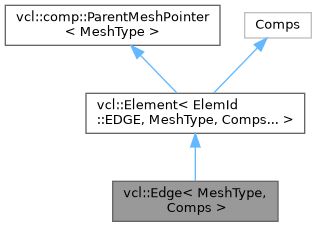

Inheritance diagram for vcl::Edge< MeshType, Comps >:

Public Types
using	VertexType = VRefs::VertexType
Public Types inherited from vcl::Element< ElemId::EDGE, MeshType, Comps... >
using	Components = TypeWrapper< Comps... >
	Components is an alias to a vcl::TypeWrapper that wraps all the Components from which the Element inherits (Comps).
using	ParentMeshType = MeshType
Public Types inherited from vcl::comp::ParentMeshPointer< MeshType >
using	ParentMeshType = MeshType

Public Member Functions
	Edge ()=default
	Empty constructor.
void	setVertices (uint vi0, uint vi1)
	Sets the vertices of the edge.
void	setVertices (VertexType *v0, VertexType *v1)
	Sets the vertices of the edge.
Public Member Functions inherited from vcl::Element< ElemId::EDGE, MeshType, Comps... >
auto &	component ()
const auto &	component () const
void	deserialize (std::istream &in)
void	importFrom (const ElType &v, bool importRefs=true)
uint	index () const
void	serialize (std::ostream &out) const
Public Member Functions inherited from vcl::comp::ParentMeshPointer< MeshType >
ParentMeshPointer &	operator= (const ParentMeshPointer< MeshType > &)
constexpr MeshType *	parentMesh ()
constexpr const MeshType *	parentMesh () const
	ParentMeshPointer (const ParentMeshPointer< MeshType > &)
	ParentMeshPointer (ParentMeshPointer< MeshType > &&)

Private Types
using	VRefs = typename Edge::VertexReferences

Additional Inherited Members
Static Public Attributes inherited from vcl::Element< ElemId::EDGE, MeshType, Comps... >
static const uint	ELEMENT_ID
Protected Member Functions inherited from vcl::comp::ParentMeshPointer< MeshType >
void	setParentMesh (void *parentMesh)

Detailed Description

template<typename MeshType, comp::ComponentConcept... Comps>
class vcl::Edge< MeshType, Comps >

The Edge class represents an Edge element of the vcl::Mesh class.

Using the EdgeContainer class, it is possible to add a vector of Edge elements to a mesh, and manage them with the member functions exposed by the EdgeContainer. Each Edge element exposes all the member functions of its Component types.

Template Parameters

MeshType	The type of the parent mesh.
Comps	The types of the components of the element.

Constructor & Destructor Documentation

Edge()

template<typename MeshType , comp::ComponentConcept... Comps>

vcl::Edge< MeshType, Comps >::Edge ( )

default

Empty constructor.

Calls automatically all the empty constructors of all the components available in the Edge (for all the components non-available, their empty constructor is called only when they become available).

Member Function Documentation

setVertices() [1/2]

template<typename MeshType , comp::ComponentConcept... Comps>

void vcl::Edge< MeshType, Comps >::setVertices ( uint  vi0, uint  vi1  )

inline

Sets the vertices of the edge.

Parameters

[in]	vi0	the index first vertex of the edge.
[in]	vi1	the index second vertex of the edge.

setVertices() [2/2]

template<typename MeshType , comp::ComponentConcept... Comps>

void vcl::Edge< MeshType, Comps >::setVertices ( VertexType *  v0, VertexType *  v1  )

inline

Sets the vertices of the edge.

Parameters

[in]	v0	the first vertex of the edge.
[in]	v1	the second vertex of the edge.

---

The documentation for this class was generated from the following file:

• vclib/core/include/vclib/mesh/elements/edge.h
