vcl::comp::Normal< P, ParentElemType, OPT > Class Template Reference

The Normal class represents a N-Dimensional normal vector that will be part of an Element (e.g. Vertex, Face...). More...

#include <vclib/mesh/components/normal.h>

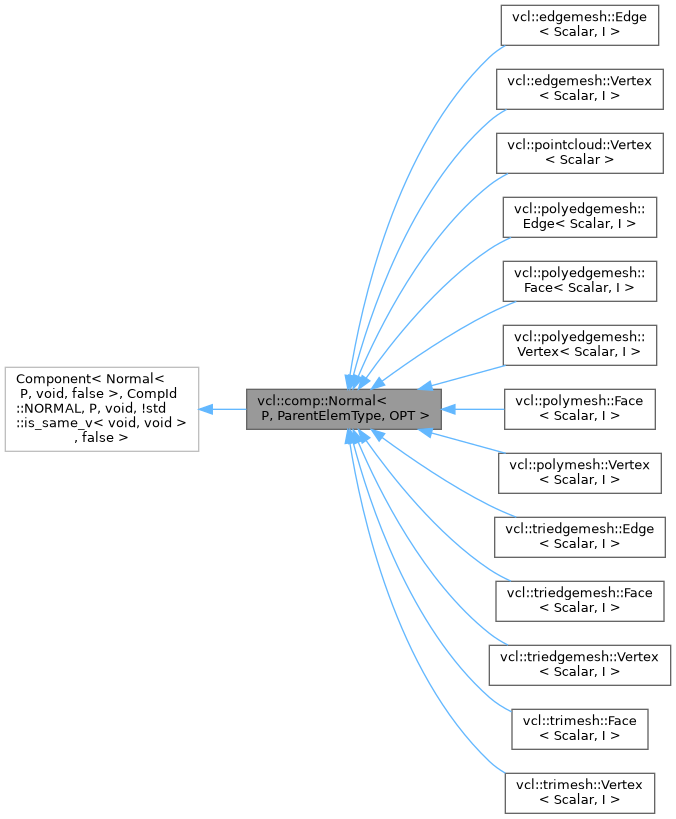

Inheritance diagram for vcl::comp::Normal< P, ParentElemType, OPT >:

Public Types
using	NormalType = P
	Expose the type of the Normal.

Public Member Functions
P &	normal ()
	Returns a reference of the normal of the element.
const P &	normal () const
	Returns a const reference of the normal of the element.
	Normal ()=default
	Initilizes the Normal to (0, 0, 0).

Protected Member Functions
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const

Private Types
using	Base = Component< Normal< P, ParentElemType, OPT >, CompId::NORMAL, P, ParentElemType, !std::is_same_v< ParentElemType, void >, OPT >

Detailed Description

template<PointConcept P, typename ParentElemType = void, bool OPT = false>
class vcl::comp::Normal< P, ParentElemType, OPT >

The Normal class represents a N-Dimensional normal vector that will be part of an Element (e.g. Vertex, Face...).

Allows to get and set an object that represents a normal. The type of this object must satisfy the PointConcept.

For example, if you have a Vertex Element v with the Normal component, you'll be able to access to this component member functions from v:

auto n = v.normal();

Template Parameters

P	The type of the normal. This template argument must be a type that satisfies the PointConcept.
ParentElemType	This template argument must be void if the component needs to be stored horizontally, or the type of the parent element that will contain this component if the component needs to be stored vertically.
OPT	If true, the component will be optional. This argument is considered only if the component is stored vertically.

Member Function Documentation

normal() [1/2]

template<PointConcept P, typename ParentElemType = void, bool OPT = false>

P & vcl::comp::Normal< P, ParentElemType, OPT >::normal ( )

inline

Returns a reference of the normal of the element.

Returns

a reference of the normal of the element.

normal() [2/2]

template<PointConcept P, typename ParentElemType = void, bool OPT = false>

const P & vcl::comp::Normal< P, ParentElemType, OPT >::normal ( ) const

inline

Returns a const reference of the normal of the element.

Returns

a const reference of the normal of the element.

---

The documentation for this class was generated from the following file:

• vclib/core/include/vclib/mesh/components/normal.h
