The AdjacentEdges class is a container of Edge indices or pointers. It could be used by any Element to save adjacencies information (also the Edge element itself). More...

#include <vclib/mesh/components/adjacent_edges.h>

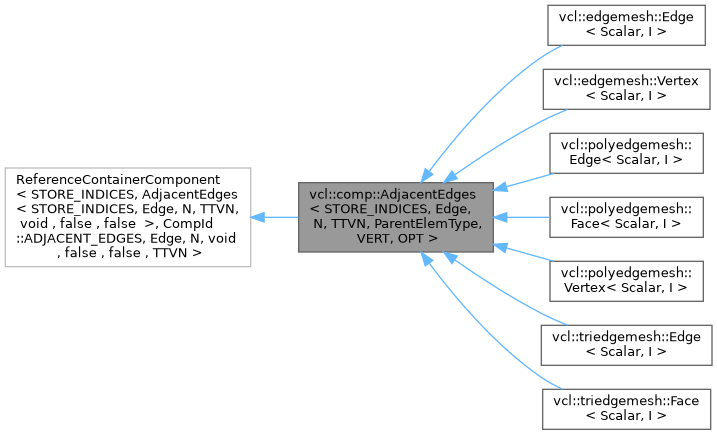

Inheritance diagram for vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >:

[legend]

Public Types
using	AdjacentEdgeIterator = Base::Iterator

using	AdjacentEdgeType = Edge
	Expose the type of the Adjacent Edge.

using	ConstAdjacentEdgeIndexIterator = Base::ConstIndexIterator

using	ConstAdjacentEdgeIterator = Base::ConstIterator

Public Member Functions
	AdjacentEdges ()=default
	Empty constructor.

Edge *	adjEdge (uint i)
	Returns the pointer to the i-th adjacent edge of the element.

const Edge *	adjEdge (uint i) const
	Returns a const pointer to the i-th adjacent edge of the element.

AdjacentEdgeIterator	adjEdgeBegin ()
	Returns an iterator to the first adjacent edge in the container of this component.

ConstAdjacentEdgeIterator	adjEdgeBegin () const
	Returns a const iterator to the first adjacent edge in the container of this component.

AdjacentEdgeIterator	adjEdgeEnd ()
	Returns an iterator to the end of the container of this component.

ConstAdjacentEdgeIterator	adjEdgeEnd () const
	Returns a const iterator to the end of the container of this component.

uint	adjEdgeIndex (uint i) const
	Returns the index in the edge container of the i-th adjacent edge of the element.

ConstAdjacentEdgeIndexIterator	adjEdgeIndexBegin () const
	Returns an iterator to the first adjacent edge index in the container of this component.

ConstAdjacentEdgeIndexIterator	adjEdgeIndexEnd () const
	Returns an iterator to the end of the container of this component.

uint	adjEdgeIndexMod (int i) const
	Returns the index in the edge container of the i-th adjacent edge of the element, but using as index the module between i and the number of adjacent edges. You can use this function if you need to get the "index of the adjacent edge next to position k", without check if it is less than the number of adjacent edges. Works also for negative numbers:

View< ConstAdjacentEdgeIndexIterator >	adjEdgeIndices () const
	Returns a lightweight view object that stores the begin and end iterators of the container of adjacent edge indices of the element. The view object exposes the iterators trough the `begin()` and `end()` member functions, and therefore the returned object can be used in range-based for loops:

Edge *	adjEdgeMod (int i)
	Returns the pointer to the i-th adjacent edge of the element but using as index the module between i and the number of adjacent edges. You can use this function if you need to get the "next adjacent edge after position k", without check if it is less than the number of adj edges. Works also for negative numbers:

const Edge *	adjEdgeMod (int i) const
	Same of adjEdgeMod, but returns a const Pointer to the adjacent edge.

View< AdjacentEdgeIterator >	adjEdges ()
	Returns a lightweight view object that stores the begin and end iterators of the container of adjacent edges of the element. The view object exposes the iterators trough the `begin()` and `end()` member functions, and therefore the returned object can be used in range-based for loops:

View< ConstAdjacentEdgeIterator >	adjEdges () const
	Returns a lightweight const view object that stores the begin and end iterators of the container of adjacent edges of the element. The view object exposes the iterators trough the `begin()` and `end()` member functions, and therefore the returned object can be used in range-based for loops:

uint	adjEdgesNumber () const
	Returns the number of adjacent edges of this element.

void	clearAdjEdges ()
	Clears the container of adjacent edges, making it empty.

bool	containsAdjEdge (const Edge *e) const
	Returns `true` if the container of adjacent edges contains the given edge, `false` otherwise.

bool	containsAdjEdge (uint ei) const
	Returns `true` if the container of adjacent edges contains the given index, `false` otherwise.

void	eraseAdjEdge (uint i)
	Removes the adjacent edge at the given position from the container.

uint	indexOfAdjEdge (const Edge *e) const
	Returns the index of the given adjacent edge in the container of the element. If the given adjacent edge is not in the container, returns UINT_NULL.

uint	indexOfAdjEdge (uint ei) const
	Returns the index of the adjacent edge with the given index in the container of the element. If the adjacent edge with the given index is not in the container, returns UINT_NULL.

void	insertAdjEdge (uint i, Edge *e)
	Inserts the given adjacent edge in the container at the given position.

void	insertAdjEdge (uint i, uint ei)
	Inserts the adjacent edge with the given index in the container at the given position.

void	pushAdjEdge (Edge *e)
	Pushes in the back of the container the given adjacent edge.

void	pushAdjEdge (uint ei)
	Pushes in the back of the container the given adjacent edge.

void	resizeAdjEdges (uint n)
	Resize the container of the adjacent edges to the given size.

void	setAdjEdge (ConstAdjacentEdgeIndexIterator it, Edge *e)
	Sets the adjacent edge pointed by the iterator.

void	setAdjEdge (ConstAdjacentEdgeIndexIterator it, uint ei)
	Sets the adjacent edge pointed by the iterator.

void	setAdjEdge (ConstAdjacentEdgeIterator it, Edge *e)
	Sets the adjacent edge pointed by the iterator.

void	setAdjEdge (ConstAdjacentEdgeIterator it, uint ei)
	Sets the adjacent edge pointed by the iterator.

void	setAdjEdge (uint i, Edge *e)
	Sets the i-th adjacent edge of the element.

void	setAdjEdge (uint i, uint ei)
	Sets the i-th adjacent edge of the element.

void	setAdjEdgeMod (int i, Edge *e)
	Sets the i-th adjacent edge of the element, but using as index the module between i and the number of adjacent edges. You can use this function if you need to set the "next adjacent edge after position k", without check if it is less than the number of adjacent edges. Works also for negative numbers:

void	setAdjEdgeMod (int i, uint ei)
	Sets the i-th adjacent edge of the element, but using as index the module between i and the number of adjacent edges. You can use this function if you need to set the "next adjacent edge after position k", without check if it is less than the number of adjacent edges. Works also for negative numbers:

template<Range Rng> requires InputRange<Rng, Edge*>
void	setAdjEdges (Rng &&r)
	Sets all the adjacent edges of the element.

template<Range Rng> requires InputRange<Rng, uint>
void	setAdjEdges (Rng &&r)
	Sets all the adjacent edges of the element.

Static Public Attributes
static const int	ADJ_EDGE_NUMBER = Base::SIZE
	Static size of the container. If the container is dynamic, this value will be negative and you should use the adjEdgesNumber() member function.

Protected Member Functions
void	deserialize (std::istream &is)

template<typename Element >
void	importFrom (const Element &e, bool importRefs=true)

void	serialize (std::ostream &os) const

Private Types
using	Base = ReferenceContainerComponent< STORE_INDICES, AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >, CompId::ADJACENT_EDGES, Edge, N, ParentElemType, VERT, OPT, TTVN >

Private Member Functions
template<typename Element >
void	importIndicesFrom (const Element &e)

Detailed Description

template<bool STORE_INDICES, typename Edge, int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>
class vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >

The AdjacentEdges class is a container of Edge indices or pointers. It could be used by any Element to save adjacencies information (also the Edge element itself).

It is a random access container having static or dynamic size, depending on the value of the template argument N (a negative number means dynamic).

The member functions of this class will be available in the instance of any Element that will contain this component.

For example, if you have a Vertex Element v that has the AdjacentEdges component, you'll be able to access to this component member functions from v:

v.adjEdgesNumber();
auto* e = v.adjEdge(0);
uint ei = v.adjEdgeIndex(0);

Note: This component could be Tied To Vertex Number: it means that the size of the container, if dynamic, will change automatically along the Vertex Number of the Component. Check the TTVN template value on the specialization of your component to check if it is tied to the Vertex Number. For further details check the documentation of the ContainerComponent class.

Template Parameters

STORE_INDICES	If true, the component will store indices, otherwise pointers to Edge.
Edge	The type of the adjacent Edge element.
N	The size of the container, that will represent the number of storable adjacent edges. If negative, the container is dynamic.
TTVN	If true, the size of the container will be tied to the Vertex Number of the component (this is used mostly on Face elements).
ParentElemType	This type is used to get access to the Element that has the component (and, in case, to the Mesh that has the Element). If the component doesn't need to access the Element, this type can be void. Note: if the component is vertical (or optional), this type cannot be void.
VERT	If true, the component will be stored vertically. This argument is considered only if the ElementType is not void.
OPT	If true, the component will be optional. This argument is considered only if the component is stored vertically.

Constructor & Destructor Documentation

◆ AdjacentEdges()

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::AdjacentEdges ( )

default

Empty constructor.

If the Adjacent Edges container size is static, initializes all the Adjacent Edges to nullptr, otherwise the container will be empty.

Member Function Documentation

◆ adjEdge() [1/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

Edge * vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::adjEdge ( uint i )

inline

Returns the pointer to the i-th adjacent edge of the element.

Parameters

[in] i the position of the required adjacent edge in this container; the value must be between 0 and the number of adj edges.

Returns: The pointer to the i-th adjacent edge of the element.

◆ adjEdge() [2/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

const Edge * vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::adjEdge ( uint i ) const

inline

Returns a const pointer to the i-th adjacent edge of the element.

Parameters

[in] i the position of the required adjacent edge in this container; the value must be between 0 and the number of adj edges.

Returns: The pointer to the i-th adjacent edge of the element.

◆ adjEdgeBegin() [1/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

AdjacentEdgeIterator vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::adjEdgeBegin ( )

inline

Returns an iterator to the first adjacent edge in the container of this component.

Returns: an iterator pointing to the begin of this container.

◆ adjEdgeBegin() [2/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

ConstAdjacentEdgeIterator vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::adjEdgeBegin ( ) const

inline

Returns a const iterator to the first adjacent edge in the container of this component.

Returns: an iterator pointing to the begin of this container.

◆ adjEdgeEnd() [1/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

AdjacentEdgeIterator vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::adjEdgeEnd ( )

inline

Returns an iterator to the end of the container of this component.

Returns: an iterator pointing to the end of this container.

◆ adjEdgeEnd() [2/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

ConstAdjacentEdgeIterator vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::adjEdgeEnd ( ) const

inline

Returns a const iterator to the end of the container of this component.

Returns: an iterator pointing to the end of this container.

◆ adjEdgeIndex()

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

uint vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::adjEdgeIndex ( uint i ) const

inline

Returns the index in the edge container of the i-th adjacent edge of the element.

Parameters

[in] i the position of the required edge in this container.

Returns: The index of the i-th adjacent edge of the element.

◆ adjEdgeIndexBegin()

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

ConstAdjacentEdgeIndexIterator vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::adjEdgeIndexBegin ( ) const

inline

Returns an iterator to the first adjacent edge index in the container of this component.

Returns: an iterator pointing to the begin of the adjacent edge indices.

◆ adjEdgeIndexEnd()

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

ConstAdjacentEdgeIndexIterator vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::adjEdgeIndexEnd ( ) const

inline

Returns an iterator to the end of the container of this component.

Returns: an iterator pointing to the end of the adjacent edge indices.

◆ adjEdgeIndexMod()

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

uint vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::adjEdgeIndexMod ( int i ) const

inline

Returns the index in the edge container of the i-th adjacent edge of the element, but using as index the module between i and the number of adjacent edges. You can use this function if you need to get the "index of the adjacent edge next to position k", without check if it is less than the number of adjacent edges. Works also for negative numbers:

k = pos; // some position of an adjacent edge
auto idx = e.adjEdgeIndexMod(k+1); // the index of the adjacent edge next
                                   // to k, that may also be at pos 0
auto lastIdx = e.adjEdgeIndexMod(-1); // the index of the adjacent edge
                                      // in position adjEdgesNumber()-1

Parameters

[in] i the position of the required adjacent edge in this container, w.r.t. the position 0; value is modularized on adjEdgesNumber().

Returns: The index of the required adjacent edge of the element.

◆ adjEdgeIndices()

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

View< ConstAdjacentEdgeIndexIterator > vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::adjEdgeIndices ( ) const

inline

Returns a lightweight view object that stores the begin and end iterators of the container of adjacent edge indices of the element. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:

for (uint eid : el.adjEdgeIndices()) {
    // Do something with adj edge index...
}

Returns: a lightweight view object that can be used in range-based for loops to iterate over adjacent edge indices.

◆ adjEdgeMod() [1/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

Edge * vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::adjEdgeMod ( int i )

inline

Returns the pointer to the i-th adjacent edge of the element but using as index the module between i and the number of adjacent edges. You can use this function if you need to get the "next adjacent edge after position k", without check if it is less than the number of adj edges. Works also for negative numbers:

k = pos; // some position of an adjacent edge
auto* next = e.adjEdgeMod(k+1); // the adj edge next to k, that may also
                                // be at pos 0
auto* last = e.adjEdgeMod(-1); // the adj edge in position
                               // adjEdgeNumber()-1

Parameters

[in] i the position of the required adjacent edge in this container, w.r.t. the position 0; value is modularized on adjEdgeNumber().

Returns: The pointer to the required adjacent edge of the element.

◆ adjEdgeMod() [2/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

const Edge * vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::adjEdgeMod ( int i ) const

inline

Same of adjEdgeMod, but returns a const Pointer to the adjacent edge.

Parameters

[in] i the position of the required adjacent edge in this container, w.r.t. the position 0; value is modularized on adjEdgeNumber().

Returns: The pointer to the required adjacent edge of this element.

◆ adjEdges() [1/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

View< AdjacentEdgeIterator > vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::adjEdges ( )

inline

Returns a lightweight view object that stores the begin and end iterators of the container of adjacent edges of the element. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:

for (auto* adjEdge : el.adjEdges()) {
    // Do something with adjEdge
}

Returns: a lightweight view object that can be used in range-based for loops to iterate over adjacent edges.

◆ adjEdges() [2/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

View< ConstAdjacentEdgeIterator > vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::adjEdges ( ) const

inline

Returns a lightweight const view object that stores the begin and end iterators of the container of adjacent edges of the element. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:

for (const auto* adjEdge : el.adjEdges()) {
    // Do something read-only with adjEdge
}

Returns: a lightweight view object that can be used in range-based for loops to iterate over adjacent edges.

◆ adjEdgesNumber()

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

uint vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::adjEdgesNumber ( ) const

inline

Returns the number of adjacent edges of this element.

Returns: The number of adjacent edges of this element.

◆ clearAdjEdges()

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::clearAdjEdges ( )

inline

Clears the container of adjacent edges, making it empty.

Note: This function is available only if the container of the Adjacent Edges component has dynamic size.

◆ containsAdjEdge() [1/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

bool vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::containsAdjEdge ( const Edge * e ) const

inline

Returns true if the container of adjacent edges contains the given edge, false otherwise.

Parameters

[in] e the pointer to the edge to search.

Returns: true if the container of adjacent edges contains the given edge, false otherwise.

◆ containsAdjEdge() [2/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

bool vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::containsAdjEdge ( uint ei ) const

inline

Returns true if the container of adjacent edges contains the given index, false otherwise.

Parameters

[in] ei the index to the edge to search.

Returns: true if the container of adjacent edges contains the given index, false otherwise.

◆ eraseAdjEdge()

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::eraseAdjEdge ( uint i )

inline

Removes the adjacent edge at the given position from the container.

Note: This function is available only if the container of the Adjacent Edges component has dynamic size.

Parameters

[in] i The position of the adjacent edge to remove from this container.

◆ indexOfAdjEdge() [1/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

uint vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::indexOfAdjEdge ( const Edge * e ) const

inline

Returns the index of the given adjacent edge in the container of the element. If the given adjacent edge is not in the container, returns UINT_NULL.

Parameters

[in] e the pointer to the adjacent edge to search.

Returns: the index of the given adjacent edge, or UINT_NULL if it is not found.

◆ indexOfAdjEdge() [2/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

uint vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::indexOfAdjEdge ( uint ei ) const

inline

Returns the index of the adjacent edge with the given index in the container of the element. If the adjacent edge with the given index is not in the container, returns UINT_NULL.

Parameters

[in] ei the index to the adjacent edge to search.

Returns: the index of the adjacent edge with the given index, or UINT_NULL if it is not found.

◆ insertAdjEdge() [1/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::insertAdjEdge	(	uint	i,
		Edge *	e
	)

inline

Inserts the given adjacent edge in the container at the given position.

Note: This function is available only if the container of the Adjacent Edges component has dynamic size.

Parameters

[in]	i	The position in this container where to insert the adjacent edge.
[in]	e	The pointer to the adjacent edge to insert in the container.

◆ insertAdjEdge() [2/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::insertAdjEdge	(	uint	i,
		uint	ei
	)

inline

Inserts the adjacent edge with the given index in the container at the given position.

Note: This function is available only if the container of the Adjacent Edges component has dynamic size.

Parameters

[in]	i	The position in this container where to insert the adjacent edge.
[in]	ei	The index to the adjacent edge to insert in the container.

◆ pushAdjEdge() [1/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::pushAdjEdge ( Edge * e )

inline

Pushes in the back of the container the given adjacent edge.

Note: This function is available only if the container of the Adjacent Edges component has dynamic size.

Parameters

[in] e The pointer to the adjacent edge to push in the back of the container.

◆ pushAdjEdge() [2/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::pushAdjEdge ( uint ei )

inline

Pushes in the back of the container the given adjacent edge.

Note: This function is available only if the container of the Adjacent Edges component has dynamic size.

Parameters

[in] ei The index to the adjacent edge to push in the back of the container.

◆ resizeAdjEdges()

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::resizeAdjEdges ( uint n )

inline

Resize the container of the adjacent edges to the given size.

Note: This function is available only if the container of the Adjacent Edges component has dynamic size.

Parameters

[in] n The new size of the adjacent edges container.

◆ setAdjEdge() [1/6]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::setAdjEdge	(	ConstAdjacentEdgeIndexIterator	it,
		Edge *	e
	)

inline

Sets the adjacent edge pointed by the iterator.

Parameters

[in]	it	the iterator in this container on which set the adjacent edge; the value must be between begin() and end().
[in]	e	The pointer to the adjacent edge to set to the element.

◆ setAdjEdge() [2/6]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::setAdjEdge	(	ConstAdjacentEdgeIndexIterator	it,
		uint	ei
	)

inline

Sets the adjacent edge pointed by the iterator.

Parameters

[in]	it	the iterator in this container on which set the adjacent edge; the value must be between begin() and end().
[in]	ei	The index in the edge container of the edge to set.

◆ setAdjEdge() [3/6]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::setAdjEdge	(	ConstAdjacentEdgeIterator	it,
		Edge *	e
	)

inline

Sets the adjacent edge pointed by the iterator.

Parameters

[in]	it	the iterator in this container on which set the adjacent edge; the value must be between begin() and end().
[in]	e	The pointer to the adjacent edge to set to the element.

◆ setAdjEdge() [4/6]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::setAdjEdge	(	ConstAdjacentEdgeIterator	it,
		uint	ei
	)

inline

Sets the adjacent edge pointed by the iterator.

Parameters

[in]	it	the iterator in this container on which set the adjacent edge; the value must be between begin() and end().
[in]	ei	The index in the edge container of the edge to set.

◆ setAdjEdge() [5/6]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::setAdjEdge	(	uint	i,
		Edge *	e
	)

inline

Sets the i-th adjacent edge of the element.

Parameters

[in]	i	the position in this container on which set the adj edge; the value must be between 0 and the number of adj edges.
[in]	e	The pointer to the adjacent edge to set to the element.

◆ setAdjEdge() [6/6]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::setAdjEdge	(	uint	i,
		uint	ei
	)

inline

Sets the i-th adjacent edge of the element.

Parameters

[in]	i	the position in this container on which set the adj edge; the value must be between 0 and the number of adj edges.
[in]	ei	The index in the edge container of the edge to set.

◆ setAdjEdgeMod() [1/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::setAdjEdgeMod	(	int	i,
		Edge *	e
	)

inline

Sets the i-th adjacent edge of the element, but using as index the module between i and the number of adjacent edges. You can use this function if you need to set the "next adjacent edge after position k", without check if it is less than the number of adjacent edges. Works also for negative numbers:

k = pos; // some position of an adj edge
e.setAdjEdgeMod(k+1, aEdge); // set the adj edge next to k, that may also
                              // be at pos 0
e.setAdjEdgeMod(-1, aEdge); // set the adj edge in position
                             // adjEdgesNumber()-1

Parameters

[in]	i	the position in this container w.r.t. the position 0 on which set the adj edge; value is modularized on adjEdgesNumber().
[in]	e	The pointer to the adj edge to set to the element.

◆ setAdjEdgeMod() [2/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::setAdjEdgeMod	(	int	i,
		uint	ei
	)

inline

Sets the i-th adjacent edge of the element, but using as index the module between i and the number of adjacent edges. You can use this function if you need to set the "next adjacent edge after position k", without check if it is less than the number of adjacent edges. Works also for negative numbers:

k = pos; // some position of an adj edge
e.setAdjEdgeMod(k+1, aEdgeInd); // set the adj edge next to k, that may
                                // also be at pos 0
e.setAdjEdgeMod(-1, aEdgeInd); // set the adj edge in position
                               // adjEdgesNumber()-1

Parameters

[in]	i	the position in this container w.r.t. the position 0 on which set the adj edge; value is modularized on adjEdgesNumber().
[in]	ei	The index in the edge container of the edge to set.

◆ setAdjEdges() [1/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

template<Range Rng>
requires InputRange<Rng, Edge*>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::setAdjEdges ( Rng && r )

inline

Sets all the adjacent edges of the element.

If the size of the container is static, the size of the input range must be the same one of the container.

Template Parameters

Rng	The type of the range of adjacent edges to set. The value type of the range must be convertible to a pointer to an AdjacentEdge.

Parameters

[in] r range of edge pointers to set.

◆ setAdjEdges() [2/2]

template<bool STORE_INDICES, typename Edge , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

template<Range Rng>
requires InputRange<Rng, uint>

void vcl::comp::AdjacentEdges< STORE_INDICES, Edge, N, TTVN, ParentElemType, VERT, OPT >::setAdjEdges ( Rng && r )

inline

Sets all the adjacent edges of the element.

If the size of the container is static, the size of the input range must be the same one of the container.

Template Parameters

Rng	The type of the range of adjacent edges to set. The value type of the range must be convertible to an unsigned integer.

Parameters

[in] r range of edges indices to set.

The documentation for this class was generated from the following file:

vclib/core/include/vclib/mesh/components/adjacent_edges.h

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Private Types

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ AdjacentEdges()

Member Function Documentation

◆ adjEdge() [1/2]

◆ adjEdge() [2/2]

◆ adjEdgeBegin() [1/2]

◆ adjEdgeBegin() [2/2]

◆ adjEdgeEnd() [1/2]

◆ adjEdgeEnd() [2/2]

◆ adjEdgeIndex()

◆ adjEdgeIndexBegin()

◆ adjEdgeIndexEnd()

◆ adjEdgeIndexMod()

◆ adjEdgeIndices()

◆ adjEdgeMod() [1/2]

◆ adjEdgeMod() [2/2]

◆ adjEdges() [1/2]

◆ adjEdges() [2/2]

◆ adjEdgesNumber()

◆ clearAdjEdges()

◆ containsAdjEdge() [1/2]

◆ containsAdjEdge() [2/2]

◆ eraseAdjEdge()

◆ indexOfAdjEdge() [1/2]

◆ indexOfAdjEdge() [2/2]

◆ insertAdjEdge() [1/2]

◆ insertAdjEdge() [2/2]

◆ pushAdjEdge() [1/2]

◆ pushAdjEdge() [2/2]

◆ resizeAdjEdges()

◆ setAdjEdge() [1/6]

◆ setAdjEdge() [2/6]

◆ setAdjEdge() [3/6]

◆ setAdjEdge() [4/6]

◆ setAdjEdge() [5/6]

◆ setAdjEdge() [6/6]

◆ setAdjEdgeMod() [1/2]

◆ setAdjEdgeMod() [2/2]

◆ setAdjEdges() [1/2]

◆ setAdjEdges() [2/2]
