vcl::pointcloud::Vertex< Scalar > Class Template Reference

The Vertex type used by the PointCloudT class. More...

#include <vclib/meshes/point_cloud.h>

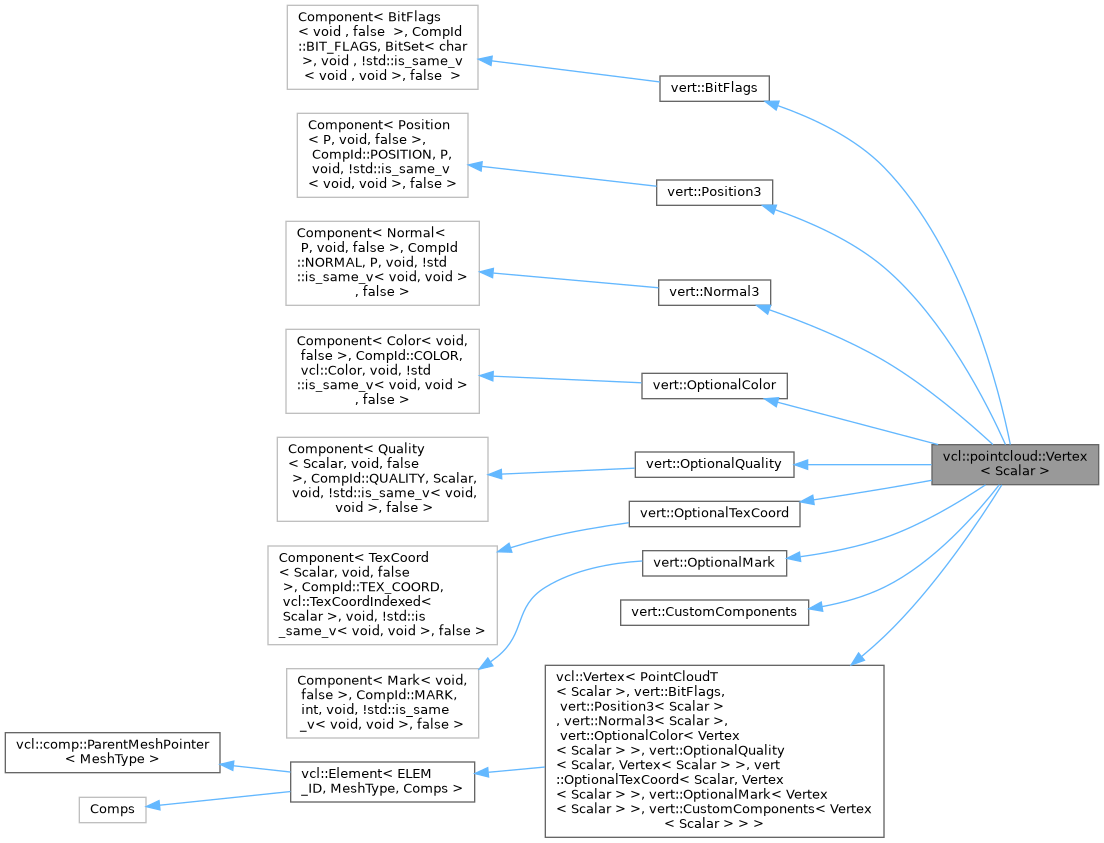

Inheritance diagram for vcl::pointcloud::Vertex< Scalar >:

Additional Inherited Members
Public Types inherited from vcl::comp::Position< P, ParentElemType, OPT >
using	PositionType = P
	Expose the type of the Position.
Public Types inherited from vcl::comp::Normal< P, ParentElemType, OPT >
using	NormalType = P
	Expose the type of the Normal.
Public Types inherited from vcl::comp::Color< ParentElemType, OPT >
using	ColorType = vcl::Color
	Expose the type of the Color.
Public Types inherited from vcl::comp::Quality< Scalar, ParentElemType, OPT >
using	QualityType = Scalar
	Exposes the scalar used as Quality type.
Public Types inherited from vcl::comp::TexCoord< Scalar, ParentElemType, OPT >
using	TexCoordType = vcl::TexCoordIndexed< Scalar >
	Expose the type of the TexCoord.
Public Types inherited from vcl::Element< ELEM_ID, MeshType, Comps >
using	Components = TypeWrapper< Comps... >
	Components is an alias to a vcl::TypeWrapper that wraps all the Components from which the Element inherits (Comps).
using	ParentMeshType = MeshType
Public Types inherited from vcl::comp::ParentMeshPointer< MeshType >
using	ParentMeshType = MeshType
Public Member Functions inherited from vcl::comp::BitFlags< ParentElemType, OPT >
	BitFlags ()
	Initializes the bits to false.
bool	deleted () const
	Returns whether the current Element is deleted or not.
int	exportFlagsToVCGFormat () const
	Returns the bit flags of this element in the format of the VCG library.
void	importFlagsFromVCGFormat (int f)
	Sets all the flags of this element to the values contained in the integer input parameter, that represents the bit flags of the VCG library.
BitProxy< FT >	onBorder ()
	Accesses the 'onBorder' bit of this Element, returning a reference to it.
bool	onBorder () const
	Returns whether the current Element is on border or not.
void	resetBitFlags ()
	Unsets all the flags of this Element and sets them to false, except the deleted flag, which needs to be manually reset.
BitProxy< FT >	selected ()
	Accesses the 'selected' bit of this Element, returning a reference to it.
bool	selected () const
	Returns whether the current Element is selected or not.
BitProxy< FT >	userBit (uint bit)
	Returns the boolean value of the user bit of this Element given in input. The bit is checked to be less than the total number of assigned user bits, which in this class is 4.
bool	userBit (uint bit) const
	Returns a reference to the value of the user bit of this Element given in input. The bit is checked to be less than the total number of assigned user bits, which in this class is 4.
BitProxy< FT >	visited ()
	Accesses the 'visited' bit of this Element, returning a reference to it.
bool	visited () const
	Returns whether the current Element has been visited or not.
Public Member Functions inherited from vcl::comp::Position< P, ParentElemType, OPT >
P &	position ()
	Returns a reference of the position of the element.
const P &	position () const
	Returns a const reference of the position of the element.
	Position ()=default
	Initilizes the Position to (0, 0, 0).
Public Member Functions inherited from vcl::comp::Normal< P, ParentElemType, OPT >
P &	normal ()
	Returns a reference of the normal of the element.
const P &	normal () const
	Returns a const reference of the normal of the element.
	Normal ()=default
	Initilizes the Normal to (0, 0, 0).
Public Member Functions inherited from vcl::comp::Color< ParentElemType, OPT >
vcl::Color &	color ()
	Returns a reference pf the color of the element.
const vcl::Color &	color () const
	Returns a const reference of the color of the element.
	Color ()=default
	Initilizes the color to black (with alpha 255).
Public Member Functions inherited from vcl::comp::Quality< Scalar, ParentElemType, OPT >
QualityType &	quality ()
	Returns a reference of the quality of the element.
const QualityType &	quality () const
	Returns a const reference of the quality of the element.
	Quality ()=default
	Initilizes the Quality value to 0.
Public Member Functions inherited from vcl::comp::TexCoord< Scalar, ParentElemType, OPT >
TexCoordType &	texCoord ()
	Returns a reference of the tex coord of the element.
const TexCoordType &	texCoord () const
	Returns a const reference of the tex coord of the element.
	TexCoord ()=default
	Initilizes the Texture Coordinate to (0, 0).
Public Member Functions inherited from vcl::comp::Mark< ParentElemType, OPT >
void	decrementMark ()
	Decrements the mark of the current element/mesh by 1.
template<typename E >
bool	hasSameMark (const E &e) const
	Checks if the current element/mesh has the same mark of the given input element/mesh e.
void	incrementMark ()
	Increments the mark of the current element/mesh by 1.
	Mark ()
	Constructor that initializes the mark to 0.
int	mark () const
	Returns the value of the mark.
void	resetMark ()
	Resets the mark to 0.
Public Member Functions inherited from vcl::comp::CustomComponents< ParentElemType >
template<typename CompType > requires (!IS_VERTICAL)
void	addCustomComponent (const std::string &compName, const CompType &value=CompType())
template<typename CompType >
CompType &	customComponent (const std::string &compName)
	Returns the reference to the custom component of the given name having the type given as template argument.
template<typename CompType >
const CompType &	customComponent (const std::string &compName) const
	Returns the const reference to the custom component of the given name having the type given as template argument.
template<typename CompType >
std::vector< std::string >	customComponentNamesOfType () const
	Returns a std::vector of std::strings containing the names of the custom components of the type given as template argument.
	CustomComponents ()=default
	Initilizes an empty container of custom components.
std::type_index	customComponentType (const std::string &compName) const
	Returns the std::type_index of the custom component of the given name.
void	deleteCustomComponent (const std::string &compName)
template<typename CompType > requires (!IS_VERTICAL)
void	deserializeCustomComponentsOfType (std::istream &is)
bool	hasCustomComponent (const std::string &compName) const
	Returns true if the element has a custom component with the given name, false otherwise. The type of the custom component is not checked.
template<typename CompType >
bool	isCustomComponentOfType (const std::string &compName) const
	Returns true if the custom component of the given name is of the type given as template argument, false otherwise.
template<typename CompType > requires (!IS_VERTICAL)
void	serializeCustomComponentsOfType (std::ostream &os) const
Public Member Functions inherited from vcl::Vertex< PointCloudT< Scalar >, vert::BitFlags, vert::Position3< Scalar >, vert::Normal3< Scalar >, vert::OptionalColor< Vertex< Scalar > >, vert::OptionalQuality< Scalar, Vertex< Scalar > >, vert::OptionalTexCoord< Scalar, Vertex< Scalar > >, vert::OptionalMark< Vertex< Scalar > >, vert::CustomComponents< Vertex< Scalar > > >
	Vertex ()=default
	Empty constructor.
Public Member Functions inherited from vcl::Element< ELEM_ID, MeshType, Comps >
template<uint COMP_ID>
auto &	component ()
template<uint COMP_ID>
const auto &	component () const
void	deserialize (std::istream &in)
template<typename ElType >
void	importFrom (const ElType &v, bool importRefs=true)
uint	index () const
void	serialize (std::ostream &out) const
Public Member Functions inherited from vcl::comp::ParentMeshPointer< MeshType >
ParentMeshPointer &	operator= (const ParentMeshPointer< MeshType > &)
constexpr MeshType *	parentMesh ()
constexpr const MeshType *	parentMesh () const
	ParentMeshPointer (const ParentMeshPointer< MeshType > &)
	ParentMeshPointer (ParentMeshPointer< MeshType > &&)
Static Public Attributes inherited from vcl::comp::BitFlags< ParentElemType, OPT >
static const uint	USER_BITS_NUMBER = sizeof(FT) * 8 - FIRST_USER_BIT
	Static number of bits that can have custom meanings to the user.
Static Public Attributes inherited from vcl::comp::CustomComponents< ParentElemType >
static const uint	COMPONENT_ID = CompId::CUSTOM_COMPONENTS
	The ID of component.
Static Public Attributes inherited from vcl::Element< ELEM_ID, MeshType, Comps >
static const uint	ELEMENT_ID = ELEM_ID
Protected Member Functions inherited from vcl::comp::BitFlags< ParentElemType, OPT >
BitProxy< FT >	deletedBit ()
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::Position< P, ParentElemType, OPT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &v, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::Normal< P, ParentElemType, OPT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::Color< ParentElemType, OPT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::Quality< Scalar, ParentElemType, OPT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::TexCoord< Scalar, ParentElemType, OPT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::Mark< ParentElemType, OPT >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::CustomComponents< ParentElemType >
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const
Protected Member Functions inherited from vcl::comp::ParentMeshPointer< MeshType >
void	setParentMesh (void *parentMesh)

Detailed Description

template<typename Scalar>
class vcl::pointcloud::Vertex< Scalar >

The Vertex type used by the PointCloudT class.

Template Parameters

Scalar

The scalar type used for the mesh.

---

The documentation for this class was generated from the following file:

• vclib/core/include/vclib/meshes/point_cloud.h
