vcl::comp::Position< P, ParentElemType, OPT > Class Template Reference

The Position class represents a N-Dimensional point that will be part of an Element (e.g. Vertex...). More...

#include <vclib/mesh/components/position.h>

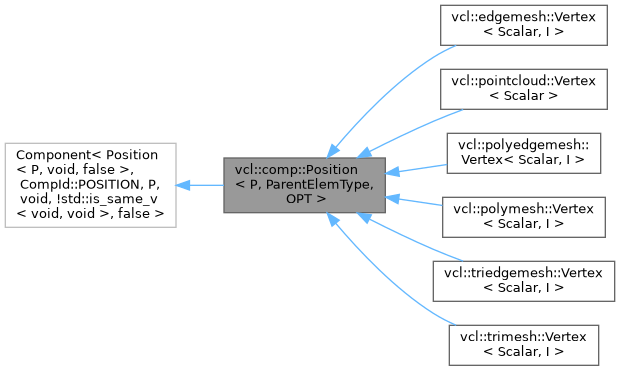

Inheritance diagram for vcl::comp::Position< P, ParentElemType, OPT >:

Public Types
using	PositionType = P
	Expose the type of the Position.

Public Member Functions
P &	position ()
	Returns a reference of the position of the element.
const P &	position () const
	Returns a const reference of the position of the element.
	Position ()=default
	Initilizes the Position to (0, 0, 0).

Protected Member Functions
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &v, bool=true)
void	serialize (std::ostream &os) const

Private Types
using	Base = Component< Position< P, ParentElemType, OPT >, CompId::POSITION, P, ParentElemType, !std::is_same_v< ParentElemType, void >, OPT >

Detailed Description

template<PointConcept P, typename ParentElemType = void, bool OPT = false>
class vcl::comp::Position< P, ParentElemType, OPT >

The Position class represents a N-Dimensional point that will be part of an Element (e.g. Vertex...).

Allows to get and set an object that represents a position in a space. The type of this object must satisfy the PointConcept.

For example, if you have a Vertex Element v with the Position component, you'll be able to access to this component member functions from v:

auto pos = v.position();

Template Parameters

P	The type of the position. This template argument must be a type that satisfies the PointConcept.
ParentElemType	This template argument must be void if the component needs to be stored horizontally, or the type of the parent element that will contain this component if the component needs to be stored vertically.
OPT	If true, the component will be optional. This argument is considered only if the component is stored vertically.

Member Function Documentation

position() [1/2]

template<PointConcept P, typename ParentElemType = void, bool OPT = false>

P & vcl::comp::Position< P, ParentElemType, OPT >::position ( )

inline

Returns a reference of the position of the element.

Returns

a reference of the position of the element.

position() [2/2]

template<PointConcept P, typename ParentElemType = void, bool OPT = false>

const P & vcl::comp::Position< P, ParentElemType, OPT >::position ( ) const

inline

Returns a const reference of the position of the element.

Returns

a const reference of the position of the element.

---

The documentation for this class was generated from the following file:

• vclib/core/include/vclib/mesh/components/position.h
