vcl::comp::MaterialIndex< ParentElemType, OPT > Class Template Reference

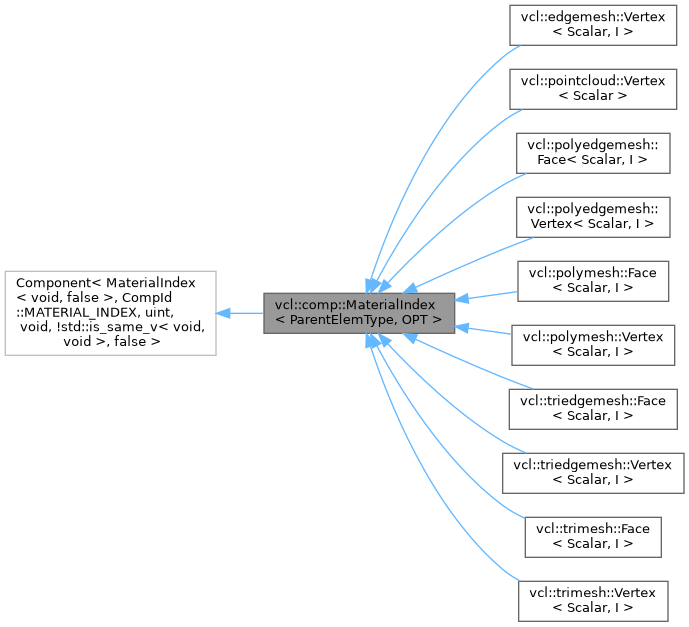

Inheritance diagram for vcl::comp::MaterialIndex< ParentElemType, OPT >:

Public Member Functions
	MaterialIndex ()
	Constructor that initializes the material index to UINT_NULL.
uint &	materialIndex ()
	Returns a reference to the material index.
uint	materialIndex () const
	Returns the value of the material index.

Protected Member Functions
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
	Returns a reference to the material index.
void	serialize (std::ostream &os) const

Private Types
using	Base = Component< MaterialIndex< ParentElemType, OPT >, CompId::MATERIAL_INDEX, uint, ParentElemType, !std::is_same_v< ParentElemType, void >, OPT >

Private Member Functions
void	init ()
	Initializes the material index to UINT_NULL.

Member Function Documentation

importFrom()

template<typename ParentElemType , bool OPT>

template<typename Element >

void vcl::comp::MaterialIndex< ParentElemType, OPT >::importFrom ( const Element &  e, bool  = true  )

protected

Returns a reference to the material index.

Same as materialIndex(). Left for compatibility reasons.

Returns

a reference to the material index.

Returns the value of the material index.

Same as materialIndex(). Left for compatibility reasons.

Returns

the value of the material index.

init()

template<typename ParentElemType = void, bool OPT = false>

void vcl::comp::MaterialIndex< ParentElemType, OPT >::init ( )

inlineprivate

Initializes the material index to UINT_NULL.

It is made in the init function since the component could be not available during construction (e.g. if the component is optional and not enabled).

This member function is hidden by the element that inherits this class.

materialIndex() [1/2]

template<typename ParentElemType = void, bool OPT = false>

uint & vcl::comp::MaterialIndex< ParentElemType, OPT >::materialIndex ( )

inline

Returns a reference to the material index.

Returns

a reference to the material index.

materialIndex() [2/2]

template<typename ParentElemType = void, bool OPT = false>

uint vcl::comp::MaterialIndex< ParentElemType, OPT >::materialIndex ( ) const

inline

Returns the value of the material index.

Returns

the value of the material index.

---

The documentation for this class was generated from the following file:

• vclib/core/include/vclib/mesh/components/material_index.h
