vcl::comp::Tangent< P, ParentElemType, OPT > Class Template Reference

The Tangent class represents a N-Dimensional tangent vector that will be part of an Element (e.g. Vertex, Face...). More...

#include <vclib/mesh/components/tangent.h>

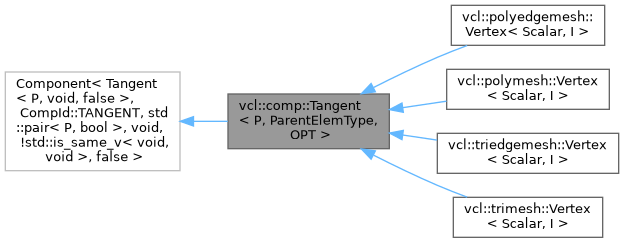

Inheritance diagram for vcl::comp::Tangent< P, ParentElemType, OPT >:

Public Types
using	TangentType = P
	Expose the type of the Tangent.

Public Member Functions
P	bitangent () const
	Computes and returns the bitangent vector using the tangent and normal vectors.
	Tangent ()
	Initilizes the Tangent to (0, 0, 0) right handed.
P &	tangent ()
	Returns a reference of the tangent of the element.
const P &	tangent () const
	Returns a const reference of the tangent of the element.
bool &	tangentRightHanded ()
	Returns a reference to the boolean that indicates if the tangent is right handed.
bool	tangentRightHanded () const
	Returns true if the tangent is right handed, false otherwise.

Protected Member Functions
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const

Private Types
using	Base = Component< Tangent< P, ParentElemType, OPT >, CompId::TANGENT, std::pair< P, bool >, ParentElemType, !std::is_same_v< ParentElemType, void >, OPT >

Private Member Functions
void	init ()
	Initializes the tangent to (0, 0, 0) right handed.

Detailed Description

template<PointConcept P, typename ParentElemType = void, bool OPT = false>
class vcl::comp::Tangent< P, ParentElemType, OPT >

The Tangent class represents a N-Dimensional tangent vector that will be part of an Element (e.g. Vertex, Face...).

Allows to get and set objects that represent a tangent. The type of these object must satisfy the PointConcept.

For example, if you have a Vertex Element v with the Tangent component, you'll be able to access to this component member functions from v:

auto tn = v.tangent();

Template Parameters

P	The type of the tangent. This template argument must be a type that satisfies the PointConcept.
ParentElemType	This template argument must be void if the component needs to be stored horizontally, or the type of the parent element that will contain this component if the component needs to be stored vertically.
OPT	If true, the component will be optional. This argument is considered only if the component is stored vertically.

Member Function Documentation

bitangent()

template<PointConcept P, typename ParentElemType = void, bool OPT = false>

P vcl::comp::Tangent< P, ParentElemType, OPT >::bitangent ( ) const

inline

Computes and returns the bitangent vector using the tangent and normal vectors.

The bitangent is computed as the cross product between the tangent and the normal vectors. The direction of the bitangent depends on the handedness of the tangent.

Exceptions

vcl::MissingComponentException

if the Normal component is not enabled on the parent element.

Returns

The computed bitangent vector.

init()

template<PointConcept P, typename ParentElemType = void, bool OPT = false>

void vcl::comp::Tangent< P, ParentElemType, OPT >::init ( )

inlineprivate

Initializes the tangent to (0, 0, 0) right handed.

It is made in the init function since the component could be not available during construction (e.g. if the component is optional and not enabled).

This member function is hidden by the element that inherits this class.

tangent() [1/2]

template<PointConcept P, typename ParentElemType = void, bool OPT = false>

P & vcl::comp::Tangent< P, ParentElemType, OPT >::tangent ( )

inline

Returns a reference of the tangent of the element.

Returns

a reference of the tangent of the element.

tangent() [2/2]

template<PointConcept P, typename ParentElemType = void, bool OPT = false>

const P & vcl::comp::Tangent< P, ParentElemType, OPT >::tangent ( ) const

inline

Returns a const reference of the tangent of the element.

Returns

a const reference of the tangent of the element.

tangentRightHanded() [1/2]

template<PointConcept P, typename ParentElemType = void, bool OPT = false>

bool & vcl::comp::Tangent< P, ParentElemType, OPT >::tangentRightHanded ( )

inline

Returns a reference to the boolean that indicates if the tangent is right handed.

Returns

a reference to the boolean that indicates if the tangent is right handed.

tangentRightHanded() [2/2]

template<PointConcept P, typename ParentElemType = void, bool OPT = false>

bool vcl::comp::Tangent< P, ParentElemType, OPT >::tangentRightHanded ( ) const

inline

Returns true if the tangent is right handed, false otherwise.

Returns

true if the tangent is right handed, false otherwise.

---

The documentation for this class was generated from the following file:

• vclib/core/include/vclib/mesh/components/tangent.h
