The AdjacentFaces class is a container of Face indices or pointers. It could be used by any Element to save adjacencies information (also the Face element itself). More...

#include <vclib/mesh/components/adjacent_faces.h>

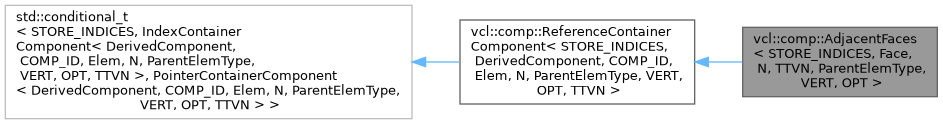

Inheritance diagram for vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >:

[legend]

Public Types
using	AdjacentFaceType = Face
	Expose the type of the Adjacent Face.

using	AdjacentFaceIterator = Base::Iterator

using	ConstAdjacentFaceIterator = Base::ConstIterator

using	ConstAdjacentFaceIndexIterator = Base::ConstIndexIterator

Public Member Functions
	AdjacentFaces ()=default
	Empty constructor.

uint	adjFacesNumber () const
	Returns the number of adjacent faces of this element.

Face *	adjFace (uint i)
	Returns the pointer to the i-th adjacent face of this element.

const Face *	adjFace (uint i) const
	Returns a const pointer to the i-th adjacent face of this element.

uint	adjFaceIndex (uint i) const
	Returns the index in the face container of the i-th adjacent face of the element.

Face *	adjFaceMod (int i)
	Returns the pointer to the i-th adjacent face of this element but using as index the module between i and the number of adjacent faces.

const Face *	adjFaceMod (int i) const
	Same of adjFaceMod, but returns a const Pointer to the adjacent face.

uint	adjFaceIndexMod (int i) const
	Returns the index in the face container of the i-th adjacent face of the element, but using as index the module between i and the number of adjacent faces. You can use this function if you need to get the "index of the adjacent face next to position k", without check if it is less than the number of adjacent faces. Works also for negative numbers:

void	setAdjFace (uint i, Face *f)
	Sets the i-th adjacent face of this element.

void	setAdjFace (uint i, uint fi)
	Sets the i-th adjacent face of the element.

void	setAdjFace (ConstAdjacentFaceIterator it, Face *f)
	Sets the adjacent face pointed by the iterator.

void	setAdjFace (ConstAdjacentFaceIterator it, uint fi)
	Sets the adjacent face pointed by the iterator.

void	setAdjFace (ConstAdjacentFaceIndexIterator it, Face *f)
	Sets the adjacent face pointed by the iterator.

void	setAdjFace (ConstAdjacentFaceIndexIterator it, uint fi)
	Sets the adjacent face pointed by the iterator.

void	setAdjFaceMod (int i, Face *f)
	Sets the i-th adjacent face of the element, but using as index the module between i and the number of adjacent faces. You can use this function if you need to set the "next adjacent face after position k", without check if it is less than the number of adjacent faces. Works also for negative numbers:

void	setAdjFaceMod (int i, uint fi)
	Sets the i-th adjacent face of the element, but using as index the module between i and the number of adjacent faces. You can use this function if you need to set the "next adjacent face after position k", without check if it is less than the number of adjacent faces. Works also for negative numbers:

template<Range Rng> requires InputRange<Rng, Face*>
void	setAdjFaces (Rng &&r)
	Sets all the adjacent faces of this element.

template<Range Rng> requires InputRange<Rng, uint>
void	setAdjFaces (Rng &&r)
	Sets all the adjacent faces of this element.

bool	containsAdjFace (const Face *f) const
	Returns `true` if the container of adjacent faces contains the given face, `false` otherwise.

bool	containsAdjFace (uint fi) const
	Returns `true` if the container of adjacent faces contains the face with the given index, `false` otherwise.

uint	indexOfAdjFace (const Face *f) const
	Returns the index of the given adjacent face in the container of this element. If the given adjacent face is not in the container, returns UINT_NULL.

uint	indexOfAdjFace (uint fi) const
	Returns the index of the adjacent face with the given index in the container of this element. If the adjacent face with the given index is not in the container, returns UINT_NULL.

void	resizeAdjFaces (uint n)
	Resize the container of the adjacent faces to the given size.

void	pushAdjFace (Face *f)
	Pushes in the back of the container the given adjacent face.

void	pushAdjFace (uint fi)
	Pushes in the back of the container the given adjacent face.

void	insertAdjFace (uint i, Face *f)
	Inserts the given adjacent face in the container at the given position.

void	insertAdjFace (uint i, uint fi)
	Inserts the adjacent face with the given index in the container at the given position.

void	eraseAdjFace (uint i)
	Removes the adjacent face at the given position from the container.

void	clearAdjFaces ()
	Clears the container of adjacent faces, making it empty.

AdjacentFaceIterator	adjFaceBegin ()
	Returns an iterator to the first adjacent face in the container of this component.

AdjacentFaceIterator	adjFaceEnd ()
	Returns an iterator to the end of the container of this component.

ConstAdjacentFaceIterator	adjFaceBegin () const
	Returns a const iterator to the first adjacent face in the container of this component.

ConstAdjacentFaceIterator	adjFaceEnd () const
	Returns a const iterator to the end of the container of this component.

ConstAdjacentFaceIndexIterator	adjFaceIndexBegin () const
	Returns an iterator to the first adjacent face index in the container of this component.

ConstAdjacentFaceIndexIterator	adjFaceIndexEnd () const
	Returns an iterator to the end of the container of this component.

View< AdjacentFaceIterator >	adjFaces ()
	Returns a lightweight view object that stores the begin and end iterators of the container of adjacent faces of the element. The view object exposes the iterators trough the `begin()` and `end()` member functions, and therefore the returned object can be used in range-based for loops:

View< ConstAdjacentFaceIterator >	adjFaces () const
	Returns a lightweight const view object that stores the begin and end iterators of the container of adjacent faces of the element. The view object exposes the iterators trough the `begin()` and `end()` member functions, and therefore the returned object can be used in range-based for loops:

View< ConstAdjacentFaceIndexIterator >	adjFaceIndices () const
	Returns a lightweight view object that stores the begin and end iterators of the container of adjacent face indices of the element. The view object exposes the iterators trough the `begin()` and `end()` member functions, and therefore the returned object can be used in range-based for loops:

void	__adjacentFaces () const

Static Public Attributes
static const int	ADJ_FACE_NUMBER = Base::SIZE
	Static size of the container. If the container is dynamic, this value will be negative and you should use the adjFacesNumber() member function.

Protected Member Functions
template<typename Element >
void	importFrom (const Element &e, bool importRefs=true)

void	serialize (std::ostream &os) const

void	deserialize (std::istream &is)

Protected Member Functions inherited from vcl::comp::ReferenceContainerComponent< STORE_INDICES, DerivedComponent, COMP_ID, Elem, N, ParentElemType, VERT, OPT, TTVN >
uint	size () const

Elem *	element (uint i)

const Elem *	element (uint i) const

uint	elementIndex (uint i) const

Elem *	elementMod (int i)

const Elem *	elementMod (int i) const

uint	elementIndexMod (int i) const

void	setElement (uint i, Elem *e)

void	setElement (uint i, uint ei)

void	setElement (Base::ConstIterator it, Elem *v)

void	setElement (Base::ConstIterator it, uint vi)

void	setElement (Base::ConstIndexIterator it, Elem *v)

void	setElement (Base::ConstIndexIterator it, uint vi)

void	setElementMod (int i, Elem *e)

void	setElementMod (int i, uint ei)

template<Range Rng> requires InputRange<Rng, Elem*>
void	setElements (Rng &&r)

template<Range Rng> requires InputRange<Rng, uint>
void	setElements (Rng &&r)

bool	containsElement (const Elem *e) const

bool	containsElement (uint ei) const

uint	indexOfElement (const Elem *e) const

uint	indexOfElement (uint ei) const

Base::Iterator	elementBegin ()

Base::Iterator	elementEnd ()

Base::ConstIterator	elementBegin () const

Base::ConstIterator	elementEnd () const

Base::ConstIndexIterator	elementIndexBegin () const

Base::ConstIndexIterator	elementIndexEnd () const

View< typename Base::Iterator >	elements ()

View< typename Base::ConstIterator >	elements () const

View< typename Base::ConstIndexIterator >	elementIndices () const

void	resize (uint n)

void	pushBack (Elem *e=nullptr)

void	pushBack (uint ei)

void	insert (uint i, Elem *e=nullptr)

void	insert (uint i, uint ei)

void	erase (uint i)

void	clear ()

uint	indexFromPointer (const Elem *v) const

Elem *	elemFromParent (uint vi)

const Elem *	elemFromParent (uint vi) const

Private Types
using	Base = ReferenceContainerComponent< STORE_INDICES, AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >, CompId::ADJACENT_FACES, Face, N, ParentElemType, VERT, OPT, TTVN >

Private Member Functions
template<typename Element >
void	importIndicesFrom (const Element &e)

Additional Inherited Members
Protected Types inherited from vcl::comp::ReferenceContainerComponent< STORE_INDICES, DerivedComponent, COMP_ID, Elem, N, ParentElemType, VERT, OPT, TTVN >
using	Base = std::conditional_t< STORE_INDICES, IndexContainerComponent< DerivedComponent, COMP_ID, Elem, N, ParentElemType, VERT, OPT, TTVN >, PointerContainerComponent< DerivedComponent, COMP_ID, Elem, N, ParentElemType, VERT, OPT, TTVN > >

Detailed Description

template<bool STORE_INDICES, typename Face, int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>
class vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >

The AdjacentFaces class is a container of Face indices or pointers. It could be used by any Element to save adjacencies information (also the Face element itself).

It is a random access container having static or dynamic size, depending on the value of N (a negative number means dynamic).

The member functions of this class will be available in the instance of any Element that will contain this component.

For example, if you have a Vertex Element v that has the AdjacentFaces component, you'll be able to access to this component member functions from v:

v.adjFacesNumber();
auto* f = v.adjFace(0);
uint vi = v.adjFaceIndex(0);

Note: This component could be Tied To Vertex Number: it means that the size of the container, if dynamic, will change automatically along the Vertex Number of the Component. Check the TTVN template value on the specialization of your component to check if it is tied to the Vertex Number. For further details check the documentation of the ContainerComponent class.

Template Parameters

STORE_INDICES	If true, the component will store indices, otherwise pointers to Face.
Face	The type of the adjacent Face element.
N	The size of the container, that will represent the number of storable adjacent faces. If negative, the container is dynamic.
TTVN	If true, the size of the container will be tied to the Vertex Number of the component (this is used mostly on Face elements).
ParentElemType	This type is used to get access to the Element that has the component (and, in case, to the Mesh that has the Element). If the component doesn't need to access the Element, this type can be void. Note: if the component is vertical (or optional), this type cannot be void.
VERT	If true, the component will be stored vertically. This argument is considered only if the ElementType is not void.
OPT	If true, the component will be optional. This argument is considered only if the component is stored vertically.

Constructor & Destructor Documentation

◆ AdjacentFaces()

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::AdjacentFaces ( )

default

Empty constructor.

If the Adjacent Faces container size is static, initializes all the Adjacent Faces to nullptr, otherwise the container will be empty.

Member Function Documentation

◆ adjFace() [1/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

Face * vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::adjFace ( uint i )

inline

Returns the pointer to the i-th adjacent face of this element.

Parameters

[in] i the position of the required adjacent face in this container; the value must be between 0 and the number of adj faces.

Returns: The pointer to the i-th adjacent face of this element.

◆ adjFace() [2/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

const Face * vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::adjFace ( uint i ) const

inline

Returns a const pointer to the i-th adjacent face of this element.

Parameters

[in] i the position of the required adjacent face in this container; the value must be between 0 and the number of adj faces.

Returns: The pointer to the i-th adjacent face of this element.

◆ adjFaceBegin() [1/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

AdjacentFaceIterator vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::adjFaceBegin ( )

inline

Returns an iterator to the first adjacent face in the container of this component.

Returns: an iterator pointing to the begin of this container.

◆ adjFaceBegin() [2/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

ConstAdjacentFaceIterator vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::adjFaceBegin ( ) const

inline

Returns a const iterator to the first adjacent face in the container of this component.

Returns: an iterator pointing to the begin of this container.

◆ adjFaceEnd() [1/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

AdjacentFaceIterator vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::adjFaceEnd ( )

inline

Returns an iterator to the end of the container of this component.

Returns: an iterator pointing to the end of this container.

◆ adjFaceEnd() [2/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

ConstAdjacentFaceIterator vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::adjFaceEnd ( ) const

inline

Returns a const iterator to the end of the container of this component.

Returns: an iterator pointing to the end of this container.

◆ adjFaceIndex()

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

uint vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::adjFaceIndex ( uint i ) const

inline

Returns the index in the face container of the i-th adjacent face of the element.

Parameters

[in] i the position of the required face in this container.

Returns: The index of the i-th adjacent face of the element.

◆ adjFaceIndexBegin()

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

ConstAdjacentFaceIndexIterator vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::adjFaceIndexBegin ( ) const

inline

Returns an iterator to the first adjacent face index in the container of this component.

Returns: an iterator pointing to the begin of the adjacent face indices.

◆ adjFaceIndexEnd()

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

ConstAdjacentFaceIndexIterator vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::adjFaceIndexEnd ( ) const

inline

Returns an iterator to the end of the container of this component.

Returns: an iterator pointing to the end of the adjacent face indices.

◆ adjFaceIndexMod()

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

uint vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::adjFaceIndexMod ( int i ) const

inline

Returns the index in the face container of the i-th adjacent face of the element, but using as index the module between i and the number of adjacent faces. You can use this function if you need to get the "index of the adjacent face next to position k", without check if it is less than the number of adjacent faces. Works also for negative numbers:

k = pos; // some position of an adjacent face
auto idx = e.adjFaceIndexMod(k+1); // the index of the adjacent face next
                                   // to k, that may also be at pos 0
auto lastIdx = e.adjFaceIndexMod(-1); // the index of the adjacent face
                                      // in position adjFacesNumber()-1

Parameters

[in] i the position of the required adjacent face in this container, w.r.t. the position 0; value is modularized on adjFacesNumber().

Returns: The index of the required adjacent face of the element.

◆ adjFaceIndices()

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

View< ConstAdjacentFaceIndexIterator > vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::adjFaceIndices ( ) const

inline

Returns a lightweight view object that stores the begin and end iterators of the container of adjacent face indices of the element. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:

for (uint eid : el.adjFaceIndices()) {
    // Do something with adj face index...
}

Returns: a lightweight view object that can be used in range-based for loops to iterate over adjacent face indices.

◆ adjFaceMod() [1/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

Face * vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::adjFaceMod ( int i )

inline

Returns the pointer to the i-th adjacent face of this element but using as index the module between i and the number of adjacent faces.

You can use this function if you need to get the "next adjacent face after position k", without check if it is less than the number of adj faces. Works also for negative numbers:

k = pos; // some position of an adjacent face
auto* next = e.adjFaceMod(k+1); // the adj face next to k, that may also
                                // be at pos 0
auto* last = e.adjFaceMod(-1); // the adj face in position
                               // adjFacesNumber()-1

Parameters

[in] i the position of the required adjacent face in this container, w.r.t. the position 0; value is modularized on adjFacesNumber().

Returns: The pointer to the required adjacent face of this element.

◆ adjFaceMod() [2/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

const Face * vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::adjFaceMod ( int i ) const

inline

Same of adjFaceMod, but returns a const Pointer to the adjacent face.

Parameters

[in] i the position of the required adjacent face in this container, w.r.t. the position 0; value is modularized on adjFacesNumber().

Returns: The pointer to the required adjacent face of this element.

◆ adjFaces() [1/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

View< AdjacentFaceIterator > vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::adjFaces ( )

inline

Returns a lightweight view object that stores the begin and end iterators of the container of adjacent faces of the element. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:

for (auto* adjFace : el.adjFaces()) {
    // Do something with adjFace
}

Returns: a lightweight view object that can be used in range-based for loops to iterate over adjacent faces.

◆ adjFaces() [2/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

View< ConstAdjacentFaceIterator > vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::adjFaces ( ) const

inline

Returns a lightweight const view object that stores the begin and end iterators of the container of adjacent faces of the element. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:

for (const auto* adjFace : el.adjFaces()) {
    // Do something read-only with adjFace
}

Returns: a lightweight view object that can be used in range-based for loops to iterate over adjacent faces.

◆ adjFacesNumber()

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

uint vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::adjFacesNumber ( ) const

inline

Returns the number of adjacent faces of this element.

Returns: The number of adjacent faces of this element.

◆ clearAdjFaces()

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::clearAdjFaces ( )

inline

Clears the container of adjacent faces, making it empty.

Note: This function is available only if the container of the Adjacent Faces component has dynamic size.

◆ containsAdjFace() [1/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

bool vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::containsAdjFace ( const Face * f ) const

inline

Returns true if the container of adjacent faces contains the given face, false otherwise.

Parameters

[in] f the pointer to the face to search.

Returns: true if the container of adjacent faces contains the given face, false otherwise.

◆ containsAdjFace() [2/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

bool vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::containsAdjFace ( uint fi ) const

inline

Returns true if the container of adjacent faces contains the face with the given index, false otherwise.

Parameters

[in] fi the index of the face to search.

Returns: true if the container of adjacent faces contains the face with the given index, false otherwise.

◆ eraseAdjFace()

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::eraseAdjFace ( uint i )

inline

Removes the adjacent face at the given position from the container.

Note: This function is available only if the container of the Adjacent Faces component has dynamic size.

Parameters

[in] i The position of the adjacent face to remove from this container.

◆ indexOfAdjFace() [1/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

uint vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::indexOfAdjFace ( const Face * f ) const

inline

Returns the index of the given adjacent face in the container of this element. If the given adjacent face is not in the container, returns UINT_NULL.

Parameters

[in] f the pointer to the adjacent face to search.

Returns: the index of the given adjacent face, or UINT_NULL if it is not found.

◆ indexOfAdjFace() [2/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

uint vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::indexOfAdjFace ( uint fi ) const

inline

Returns the index of the adjacent face with the given index in the container of this element. If the adjacent face with the given index is not in the container, returns UINT_NULL.

Parameters

[in] fi the index of the adjacent face to search.

Returns: the index of the adjacent face with the given index, or UINT_NULL if it is not found.

◆ insertAdjFace() [1/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::insertAdjFace	(	uint	i,
		Face *	f
	)

inline

Inserts the given adjacent face in the container at the given position.

Note: This function is available only if the container of the Adjacent Faces component has dynamic size.

Parameters

[in]	i	The position in this container where to insert the adjacent face.
[in]	f	The pointer to the adjacent face to insert in the container.

◆ insertAdjFace() [2/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::insertAdjFace	(	uint	i,
		uint	fi
	)

inline

Inserts the adjacent face with the given index in the container at the given position.

Note: This function is available only if the container of the Adjacent Faces component has dynamic size.

Parameters

[in]	i	The position in this container where to insert the adjacent face.
[in]	fi	The index to the adjacent face to insert in the container.

◆ pushAdjFace() [1/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::pushAdjFace ( Face * f )

inline

Pushes in the back of the container the given adjacent face.

Note: This function is available only if the container of the Adjacent Faces component has dynamic size.

Parameters

[in] f The pointer to the adjacent face to push in the back of the container.

◆ pushAdjFace() [2/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::pushAdjFace ( uint fi )

inline

Pushes in the back of the container the given adjacent face.

Note: This function is available only if the container of the Adjacent Faces component has dynamic size.

Parameters

[in] fi The index to the adjacent face to push in the back of the container.

◆ resizeAdjFaces()

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::resizeAdjFaces ( uint n )

inline

Resize the container of the adjacent faces to the given size.

Note: This function is available only if the container of the Adjacent Faces is has dynamic size.

Parameters

[in] n The new size of the adjacent faces container.

◆ setAdjFace() [1/6]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::setAdjFace	(	ConstAdjacentFaceIndexIterator	it,
		Face *	f
	)

inline

Sets the adjacent face pointed by the iterator.

Parameters

[in]	it	the iterator in this container on which set the adjacent face; the value must be between begin() and end().
[in]	f	The pointer to the adjacent face to set to the element.

◆ setAdjFace() [2/6]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::setAdjFace	(	ConstAdjacentFaceIndexIterator	it,
		uint	fi
	)

inline

Sets the adjacent face pointed by the iterator.

Parameters

[in]	it	the iterator in this container on which set the adjacent face; the value must be between begin() and end().
[in]	fi	The index in the face container of the face to set.

◆ setAdjFace() [3/6]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::setAdjFace	(	ConstAdjacentFaceIterator	it,
		Face *	f
	)

inline

Sets the adjacent face pointed by the iterator.

Parameters

[in]	it	the iterator in this container on which set the adjacent face; the value must be between begin() and end().
[in]	f	The pointer to the adjacent face to set to the element.

◆ setAdjFace() [4/6]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::setAdjFace	(	ConstAdjacentFaceIterator	it,
		uint	fi
	)

inline

Sets the adjacent face pointed by the iterator.

Parameters

[in]	it	the iterator in this container on which set the adjacent face; the value must be between begin() and end().
[in]	fi	The index in the face container of the face to set.

◆ setAdjFace() [5/6]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::setAdjFace	(	uint	i,
		Face *	f
	)

inline

Sets the i-th adjacent face of this element.

Parameters

[in]	i	the position in this container on which set the adj face; the value must be between 0 and the number of adj faces.
[in]	f	The pointer to the adjacent face to set to this element.

◆ setAdjFace() [6/6]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::setAdjFace	(	uint	i,
		uint	fi
	)

inline

Sets the i-th adjacent face of the element.

Parameters

[in]	i	the position in this container on which set the adj face; the value must be between 0 and the number of adj faces.
[in]	fi	The index in the face container of the face to set.

◆ setAdjFaceMod() [1/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::setAdjFaceMod	(	int	i,
		Face *	f
	)

inline

Sets the i-th adjacent face of the element, but using as index the module between i and the number of adjacent faces. You can use this function if you need to set the "next adjacent face after position k", without check if it is less than the number of adjacent faces. Works also for negative numbers:

k = pos; // some position of an adj face
e.setAdjFaceMod(k+1, aFace); // set the adj face next to k, that may also
                              // be at pos 0
e.setAdjFaceMod(-1, aFace); // set the adj face in position
                             // adjFacesNumber()-1

Parameters

[in]	i	the position in this container w.r.t. the position 0 on which set the adj face; value is modularized on adjFacesNumber().
[in]	f	The pointer to the adj face to set to the element.

◆ setAdjFaceMod() [2/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::setAdjFaceMod	(	int	i,
		uint	fi
	)

inline

Sets the i-th adjacent face of the element, but using as index the module between i and the number of adjacent faces. You can use this function if you need to set the "next adjacent face after position k", without check if it is less than the number of adjacent faces. Works also for negative numbers:

k = pos; // some position of an adj face
e.setAdjFaceMod(k+1, aFaceInd); // set the adj face next to k, that may
                                // also be at pos 0
e.setAdjFaceMod(-1, aFaceInd); // set the adj face in position
                               // adjFacesNumber()-1

Parameters

[in]	i	the position in this container w.r.t. the position 0 on which set the adj face; value is modularized on adjFacesNumber().
[in]	fi	The index in the face containrt of the face to set.

◆ setAdjFaces() [1/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

template<Range Rng>
requires InputRange<Rng, Face*>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::setAdjFaces ( Rng && r )

inline

Sets all the adjacent faces of this element.

If the size of the container is static, the size of the input range must be the same one of the container.

Template Parameters

Rng	The type of the range of adjacent faces to set. The value type of the range must be convertible to a pointer to an AdjacentFace.

Parameters

[in] r range of face pointers to set.

◆ setAdjFaces() [2/2]

template<bool STORE_INDICES, typename Face , int N, bool TTVN, typename ParentElemType = void, bool VERT = false, bool OPT = false>

template<Range Rng>
requires InputRange<Rng, uint>

void vcl::comp::AdjacentFaces< STORE_INDICES, Face, N, TTVN, ParentElemType, VERT, OPT >::setAdjFaces ( Rng && r )

inline

Sets all the adjacent faces of this element.

If the size of the container is static, the size of the input range must be the same one of the container.

Template Parameters

Rng	The type of the range of adjacent faces to set. The value type of the range must be convertible to an unsigned integer.

Parameters

[in] r range of face indices to set.

The documentation for this class was generated from the following file:

vclib/core/include/vclib/mesh/components/adjacent_faces.h

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Private Types

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ AdjacentFaces()

Member Function Documentation

◆ adjFace() [1/2]

◆ adjFace() [2/2]

◆ adjFaceBegin() [1/2]

◆ adjFaceBegin() [2/2]

◆ adjFaceEnd() [1/2]

◆ adjFaceEnd() [2/2]

◆ adjFaceIndex()

◆ adjFaceIndexBegin()

◆ adjFaceIndexEnd()

◆ adjFaceIndexMod()

◆ adjFaceIndices()

◆ adjFaceMod() [1/2]

◆ adjFaceMod() [2/2]

◆ adjFaces() [1/2]

◆ adjFaces() [2/2]

◆ adjFacesNumber()

◆ clearAdjFaces()

◆ containsAdjFace() [1/2]

◆ containsAdjFace() [2/2]

◆ eraseAdjFace()

◆ indexOfAdjFace() [1/2]

◆ indexOfAdjFace() [2/2]

◆ insertAdjFace() [1/2]

◆ insertAdjFace() [2/2]

◆ pushAdjFace() [1/2]

◆ pushAdjFace() [2/2]

◆ resizeAdjFaces()

◆ setAdjFace() [1/6]

◆ setAdjFace() [2/6]

◆ setAdjFace() [3/6]

◆ setAdjFace() [4/6]

◆ setAdjFace() [5/6]

◆ setAdjFace() [6/6]

◆ setAdjFaceMod() [1/2]

◆ setAdjFaceMod() [2/2]

◆ setAdjFaces() [1/2]

◆ setAdjFaces() [2/2]
