vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT > Class Template Reference

The WedgeTexCoords class is a container of texture coordinates associated to the wedges of a Face element. More...

#include <vclib/mesh/components/wedge_tex_coords.h>

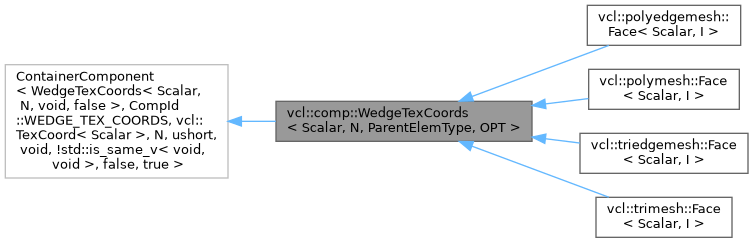

Inheritance diagram for vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >:

Public Types
using	ConstWedgeTexCoordsIterator = Vector< vcl::TexCoord< Scalar >, N >::ConstIterator
using	WedgeTexCoordsIterator = Vector< vcl::TexCoord< Scalar >, N >::Iterator
using	WedgeTexCoordType = vcl::TexCoord< Scalar >
	Expose the type of the Texture Coordinate.

Public Member Functions
void	__wedgeTexCoords () const
void	setWedgeTexCoord (uint i, const vcl::TexCoord< Scalar > &t)
	Sets the i-th wedge texcoord of the element.
template<Range Rng> requires InputRange<Rng, vcl::TexCoord<Scalar>>
void	setWedgeTexCoords (Rng &&r)
	Sets all the wedge texcoords of the element.
ushort &	textureIndex ()
	Returns a reference to the texture index used to identify the texture on which the wedge texture coordinates are mapped.
ushort	textureIndex () const
	Returns the texture index used to identify the texture on which the wedge texture coordinates are mapped.
vcl::TexCoord< Scalar > &	wedgeTexCoord (uint i)
	Returns a reference to the i-th wedge texcoord of the element.
const vcl::TexCoord< Scalar > &	wedgeTexCoord (uint i) const
	Returns a const reference to the i-th wedge texcoord of the element.
WedgeTexCoordsIterator	wedgeTexCoordBegin ()
	Returns an iterator to the first wedge texcoord in the container of this component.
ConstWedgeTexCoordsIterator	wedgeTexCoordBegin () const
	Returns a const iterator to the first wedge texcoord in the container of this component.
WedgeTexCoordsIterator	wedgeTexCoordEnd ()
	Returns an iterator to the end of the container of this component.
ConstWedgeTexCoordsIterator	wedgeTexCoordEnd () const
	Returns a const iterator to the end of the container of this component.
vcl::TexCoord< Scalar > &	wedgeTexCoordMod (int i)
	Returns a reference to the i-th wedge texcoord of the element but using as index the module between i and the number of vertices of the element. You can use this function if you need to get the "next wedge texcoord after position k", without check if it is less than the number of vertices. Works also for negative numbers:
const vcl::TexCoord< Scalar > &	wedgeTexCoordMod (int i) const
	Same of wedgeTexCoordMod(int) but returns a const reference.
View< WedgeTexCoordsIterator >	wedgeTexCoords ()
	Returns a lightweight view object that stores the begin and end iterators of the container of wedge texcoords of the element. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:
View< ConstWedgeTexCoordsIterator >	wedgeTexCoords () const
	Returns a lightweight const view object that stores the begin and end iterators of the container of wedge texcoords of the element. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:
	WedgeTexCoords ()=default
	Empty constructor.

Static Public Attributes
static const int	WEDGE_TEX_COORD_NUMBER = N

Protected Types
using	WedgeTexCoordScalarType = Scalar

Protected Member Functions
void	clear ()
void	deserialize (std::istream &is)
void	erase (uint i)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	insert (uint i, const vcl::TexCoord< Scalar > &t=vcl::TexCoord< Scalar >())
void	pushBack (const vcl::TexCoord< Scalar > &t=vcl::TexCoord< Scalar >())
void	resize (uint n)
void	serialize (std::ostream &os) const

Private Types
using	Base = ContainerComponent< WedgeTexCoords< Scalar, N, ParentElemType, OPT >, CompId::WEDGE_TEX_COORDS, vcl::TexCoord< Scalar >, N, ushort, ParentElemType, !std::is_same_v< ParentElemType, void >, OPT, true >

Private Member Functions
template<typename Element >
void	importWedgeTexCoordsFrom (const Element &e)
Vector< vcl::TexCoord< Scalar >, N > &	texCoords ()
const Vector< vcl::TexCoord< Scalar >, N > &	texCoords () const

Detailed Description

template<typename Scalar, int N, typename ParentElemType = void, bool OPT = false>
class vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >

The WedgeTexCoords class is a container of texture coordinates associated to the wedges of a Face element.

The component is composed of a static or dynamic size container, depending on the value of the template argument N (a negative value indicates a dynamic size), plus a texture index that represents the index of the texture used by all the texture coordinates stored in the container.

The member functions of this class will be available in the instance of any Element that will contain this component, altough it is usually used (and it makes sense only) on the Face element.

For example, if you have a Face Element f that has the WedgeTexCoords component, you'll be able to access to this component member functions from f:

auto t = f.wedgeTexCoord(0);
ushort tid = f.textureIndex();

Note

This component is Tied To Vertex Number: it means that the size of the container, if dynamic, will change automatically along the Vertex Number of the Component. For further details check the documentation of the ContainerComponent class.

Template Parameters

Scalar	The Scalar type used for the texture coordinates.
N	The size of the container, that will represent the number of storable wedge texcoords. If N is negative, the container will be dynamic. In any case, N must be the same of the Vertex Number of the Element that will contain this component.
ParentElemType	This template argument must be void if the component needs to be stored horizontally, or the type of the parent element that will contain this component if the component needs to be stored vertically.
OPT	If true, the component will be optional. This argument is considered only if the component is stored vertically.

Constructor & Destructor Documentation

WedgeTexCoords()

template<typename Scalar , int N, typename ParentElemType = void, bool OPT = false>

vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >::WedgeTexCoords ( )

default

Empty constructor.

If the Wedge TexCoords container size is static, initializes all the Wedge TexCoords to with the vcl::TexCoord empty constructor, otherwise the container will be empty.

Member Function Documentation

setWedgeTexCoord()

template<typename Scalar , int N, typename ParentElemType = void, bool OPT = false>

void vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >::setWedgeTexCoord ( uint  i, const vcl::TexCoord< Scalar > &  t  )

inline

Sets the i-th wedge texcoord of the element.

Parameters

[in]	i	the position in the container on which set the wedge texcoord; the value must be between 0 and the number of vertices of the element.
[in]	t	the new wedge texcoord.

setWedgeTexCoords()

template<typename Scalar , int N, typename ParentElemType = void, bool OPT = false>

template<Range Rng>
requires InputRange<Rng, vcl::TexCoord<Scalar>>

void vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >::setWedgeTexCoords ( Rng &&  r )

inline

Sets all the wedge texcoords of the element.

If the size of the container is static, the size of the input range must be the same one of the container.

Template Parameters

Rng	The type of the range of wedge texcoords to set. The value type of the range must be convertible to a vcl::TexCoord<Scalar>.

Parameters

[in]

r

range of texcoords to set.

textureIndex() [1/2]

template<typename Scalar , int N, typename ParentElemType = void, bool OPT = false>

ushort & vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >::textureIndex ( )

inline

Returns a reference to the texture index used to identify the texture on which the wedge texture coordinates are mapped.

Returns

A reference to the texture index.

textureIndex() [2/2]

template<typename Scalar , int N, typename ParentElemType = void, bool OPT = false>

ushort vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >::textureIndex ( ) const

inline

Returns the texture index used to identify the texture on which the wedge texture coordinates are mapped.

Returns

The texture index.

wedgeTexCoord() [1/2]

template<typename Scalar , int N, typename ParentElemType = void, bool OPT = false>

vcl::TexCoord< Scalar > & vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >::wedgeTexCoord ( uint  i )

inline

Returns a reference to the i-th wedge texcoord of the element.

You can use this function to set the i-th texcoord of the element:

f.wedgeTexCoord(0) = {0.5, 0.5};

Parameters

[in]

i

the index of the wedge texcoord to return. The value must be between 0 and the number of vertices of the element.

Returns

A reference to the i-th wedge texcoord of the element.

wedgeTexCoord() [2/2]

template<typename Scalar , int N, typename ParentElemType = void, bool OPT = false>

const vcl::TexCoord< Scalar > & vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >::wedgeTexCoord ( uint  i ) const

inline

Returns a const reference to the i-th wedge texcoord of the element.

Parameters

[in]

i

the index of the wedge texcoord to return. The value must be between 0 and the number of vertices of the element.

Returns

A const reference to the i-th wedge texcoord of the element.

wedgeTexCoordBegin() [1/2]

template<typename Scalar , int N, typename ParentElemType = void, bool OPT = false>

WedgeTexCoordsIterator vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >::wedgeTexCoordBegin ( )

inline

Returns an iterator to the first wedge texcoord in the container of this component.

Returns

an iterator pointing to the begin of this container.

wedgeTexCoordBegin() [2/2]

template<typename Scalar , int N, typename ParentElemType = void, bool OPT = false>

ConstWedgeTexCoordsIterator vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >::wedgeTexCoordBegin ( ) const

inline

Returns a const iterator to the first wedge texcoord in the container of this component.

Returns

a const iterator pointing to the begin of this container.

wedgeTexCoordEnd() [1/2]

template<typename Scalar , int N, typename ParentElemType = void, bool OPT = false>

WedgeTexCoordsIterator vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >::wedgeTexCoordEnd ( )

inline

Returns an iterator to the end of the container of this component.

Returns

an iterator pointing to the end of this container.

wedgeTexCoordEnd() [2/2]

template<typename Scalar , int N, typename ParentElemType = void, bool OPT = false>

ConstWedgeTexCoordsIterator vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >::wedgeTexCoordEnd ( ) const

inline

Returns a const iterator to the end of the container of this component.

Returns

a const iterator pointing to the end of this container.

wedgeTexCoordMod() [1/2]

template<typename Scalar , int N, typename ParentElemType = void, bool OPT = false>

vcl::TexCoord< Scalar > & vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >::wedgeTexCoordMod ( int  i )

inline

Returns a reference to the i-th wedge texcoord of the element but using as index the module between i and the number of vertices of the element. You can use this function if you need to get the "next wedge texcoord after position k", without check if it is less than the number of vertices. Works also for negative numbers:

f.wedgeTexCoordMod(-1) = {0.1, 0.2}; // the wedge texcoord in position
                                     // vertexNumber() - 1

Parameters

[in]

i

the position of the required wedge texcoord in the container, w.r.t. the position 0; value is modularized on vertexNumber().

Returns

A reference to the required wedge texcoord of the element.

wedgeTexCoordMod() [2/2]

template<typename Scalar , int N, typename ParentElemType = void, bool OPT = false>

const vcl::TexCoord< Scalar > & vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >::wedgeTexCoordMod ( int  i ) const

inline

Same of wedgeTexCoordMod(int) but returns a const reference.

Parameters

[in]

i

the position of the required wedge texcoord in the container, w.r.t. the position 0; value is modularized on vertexNumber().

Returns

A const reference to the required wedge texcoord of the element.

wedgeTexCoords() [1/2]

template<typename Scalar , int N, typename ParentElemType = void, bool OPT = false>

View< WedgeTexCoordsIterator > vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >::wedgeTexCoords ( )

inline

Returns a lightweight view object that stores the begin and end iterators of the container of wedge texcoords of the element. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:

for (auto& tc : el.wedgeTexCoords()) {
    // Do something with tc
}

Returns

a lightweight view object that can be used in range-based for loops to iterate over wedge texcoords.

wedgeTexCoords() [2/2]

template<typename Scalar , int N, typename ParentElemType = void, bool OPT = false>

View< ConstWedgeTexCoordsIterator > vcl::comp::WedgeTexCoords< Scalar, N, ParentElemType, OPT >::wedgeTexCoords ( ) const

inline

Returns a lightweight const view object that stores the begin and end iterators of the container of wedge texcoords of the element. The view object exposes the iterators trough the begin() and end() member functions, and therefore the returned object can be used in range-based for loops:

for (const auto& tc : el.wedgeTexCoords()) {
    // Do something read-only with tc
}

Returns

a lightweight const view object that can be used in range-based for loops to iterate over wedge texcoords.

---

The documentation for this class was generated from the following file:

• vclib/core/include/vclib/mesh/components/wedge_tex_coords.h
