vcl::comp::PrincipalCurvature< Scalar, ParentElemType, OPT > Class Template Reference

The PrincipalCurvature class represents a component that stores the principal curvature directions and values at a point on a surface. This component could be part of Vertices or Faces. More...

#include <vclib/mesh/components/principal_curvature.h>

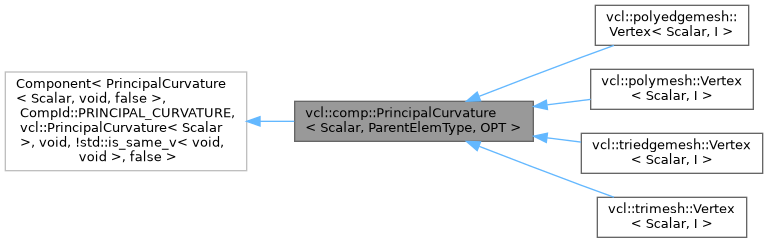

Inheritance diagram for vcl::comp::PrincipalCurvature< Scalar, ParentElemType, OPT >:

Public Types
using	PrincipalCurvatureType = vcl::PrincipalCurvature< Scalar >
	Expose the type of the principal curvature object.

Public Member Functions
PrincipalCurvatureType &	principalCurvature ()
	Returns a reference of the principal curvature of the element.
const PrincipalCurvatureType &	principalCurvature () const
	Returns a const reference of the principal curvature of the element.
	PrincipalCurvature ()=default
	Initilizes the PrincipalCurvature values to 0.

Protected Member Functions
void	deserialize (std::istream &is)
template<typename Element >
void	importFrom (const Element &e, bool=true)
void	serialize (std::ostream &os) const

Private Types
using	Base = Component< PrincipalCurvature< Scalar, ParentElemType, OPT >, CompId::PRINCIPAL_CURVATURE, vcl::PrincipalCurvature< Scalar >, ParentElemType, !std::is_same_v< ParentElemType, void >, OPT >

Detailed Description

template<typename Scalar, typename ParentElemType = void, bool OPT = false>
class vcl::comp::PrincipalCurvature< Scalar, ParentElemType, OPT >

The PrincipalCurvature class represents a component that stores the principal curvature directions and values at a point on a surface. This component could be part of Vertices or Faces.

It exposes a vcl::PrincipalCurvature object, that stores the two principal curvature directions (maxDir() and minDir(), also note as k1 and k2 respectively) and the maximum and minimum values of the curvature (maxValue() and minValue()).

For example, if you have a Vertex Element v with the PrincipalCurvature component, you'll be able to access to this component member functions from v:

auto k1 = v.principalCurvature().maxDir();
auto maxv = v.principalCurvature().maxValue();

Template Parameters

Scalar	The scalar type of the principal curvature values.
ParentElemType	This template argument must be void if the component needs to be stored horizontally, or the type of the parent element that will contain this component if the component needs to be stored vertically.
OPT	If true, the component will be optional. This argument is considered only if the component is stored vertically.

Member Function Documentation

principalCurvature() [1/2]

template<typename Scalar , typename ParentElemType = void, bool OPT = false>

PrincipalCurvatureType & vcl::comp::PrincipalCurvature< Scalar, ParentElemType, OPT >::principalCurvature ( )

inline

Returns a reference of the principal curvature of the element.

Returns

a reference of the principal curvature of the element.

principalCurvature() [2/2]

template<typename Scalar , typename ParentElemType = void, bool OPT = false>

const PrincipalCurvatureType & vcl::comp::PrincipalCurvature< Scalar, ParentElemType, OPT >::principalCurvature ( ) const

inline

Returns a const reference of the principal curvature of the element.

Returns

a const reference of the principal curvature of the element.

---

The documentation for this class was generated from the following file:

• vclib/core/include/vclib/mesh/components/principal_curvature.h
