vcl::AbstractDrawableMesh Class Reference

The AbstractDrawableMesh class is the base class for all the drawable meshes in the VCLib render system. More...

#include <vclib/render/drawable/abstract_drawable_mesh.h>

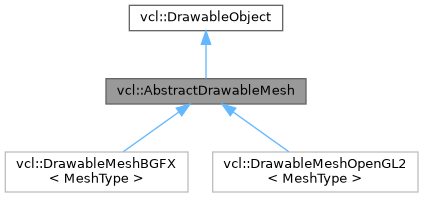

Inheritance diagram for vcl::AbstractDrawableMesh:

Public Member Functions
	AbstractDrawableMesh (const AbstractDrawableMesh &other)=default
template<MeshConcept MeshType>
	AbstractDrawableMesh (const MeshType &m)
virtual uint	edgeNumber () const =0
virtual uint	faceNumber () const =0
bool	isVisible () const
	This member function is used to check if the object is visible.
const MeshRenderSettings &	renderSettings () const
virtual void	setRenderSettings (const MeshRenderSettings &rs)
void	setVisibility (bool vis)
	This member function is used to set the visibility of the object.
virtual std::vector< std::string >	textures () const
virtual vcl::Matrix44d	transformMatrix () const =0
virtual void	updateBuffers (MeshRenderInfo::BuffersBitSet buffersToUpdate=MeshRenderInfo::BUFFERS_ALL)=0
virtual uint	vertexNumber () const =0
Public Member Functions inherited from vcl::DrawableObject
virtual vcl::Box3d	boundingBox () const =0
	This member function is used to find a good camera position to render object. It should return the the bounding box of the object. Return a null bounding box if the object shouldn't influence the position of the camera.
virtual std::shared_ptr< DrawableObject >	clone () &&=0
	This member function is used to create a new DrawableObject that is a moved from the current one. This object will be destroyed after the call of this function. Each derived class must implement this member function, that returns a shared pointer pointing to the moved object. For more details about this paradigm, check polimorphism clone in modern c++: https://www.fluentcpp.com/2017/09/08/make-polymorphic-copy-modern-cpp/.
virtual std::shared_ptr< DrawableObject >	clone () const &=0
	This member function is used to create a new copy of the DrawableObject. Each derived class must implement this member function, that returns a shared pointer pointing to a copy of the current one. for more details about this paradigm, check polimorphism clone in modern c++: https://www.fluentcpp.com/2017/09/08/make-polymorphic-copy-modern-cpp/.
virtual void	draw (uint viewId=0) const =0
	This member function must draw the object. It will be called at every frame.
	DrawableObject ()=default
	Empty constructor.
virtual void	drawId (uint viewId, uint id) const
	This member function should draw the object. It will be called on request when the renderer needs to draw the ID of the object.
std::string &	info ()
	Returns a reference of the info of the object, that allows to modify it.
const std::string &	info () const
	Returns the info of the object.
virtual void	init ()
	This member function is called after the initialization of the Context. It must initialize and bind data to the GPU like buffers and textures.
virtual std::string &	name ()
	Returns a reference of the name of the object, that allows to modify it.
virtual const std::string &	name () const
	Returns the name of the object.

Protected Member Functions
void	swap (AbstractDrawableMesh &other)
Protected Member Functions inherited from vcl::DrawableObject
void	swap (DrawableObject &other)
	Utility swap function that allows to swap the content of two DrawableObject instances.

Protected Attributes
MeshRenderSettings	mMRS

Detailed Description

The AbstractDrawableMesh class is the base class for all the drawable meshes in the VCLib render system.

It provides a common interface for drawable meshes, allowing to handle their render settings.

Member Function Documentation

isVisible()

bool vcl::AbstractDrawableMesh::isVisible ( ) const

inlinevirtual

This member function is used to check if the object is visible.

Returns

true if the object is visible;

Implements vcl::DrawableObject.

setVisibility()

void vcl::AbstractDrawableMesh::setVisibility ( bool  vis )

inlinevirtual

This member function is used to set the visibility of the object.

Parameters

[in]

vis

true if the object should be visible;

Implements vcl::DrawableObject.

Reimplemented in vcl::DrawableMeshBGFX< MeshType >.

---

The documentation for this class was generated from the following file:

• vclib/render/include/vclib/render/drawable/abstract_drawable_mesh.h
