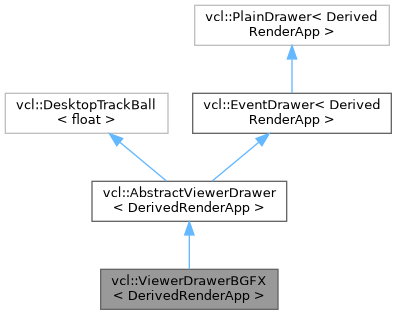

Inheritance diagram for vcl::ViewerDrawerBGFX< DerivedRenderApp >:

[legend]

Public Member Functions
	ViewerDrawerBGFX (uint width=1024, uint height=768)

	ViewerDrawerBGFX (const std::shared_ptr< DrawableObjectVector > &v, uint width=1024, uint height=768)

void	onInit (uint viewId) override

void	onDraw (uint viewId) override

void	onDrawContent (uint viewId) override

void	onKeyPress (Key::Enum key, const KeyModifiers &modifiers) override

void	onMouseDoubleClick (MouseButton::Enum button, double x, double y, const KeyModifiers &modifiers) override

void	toggleAxisVisibility () override

void	toggleTrackBallVisibility () override

Public Member Functions inherited from vcl::AbstractViewerDrawer< DerivedRenderApp >
	AbstractViewerDrawer (uint width=1024, uint height=768)

const DrawableObjectVector &	drawableObjectVector () const

void	setDrawableObjectVector (const std::shared_ptr< DrawableObjectVector > &v)

uint	pushDrawableObject (const DrawableObject &obj)

uint	pushDrawableObject (DrawableObject &&obj)

void	fitScene ()

void	onResize (unsigned int width, unsigned int height) override

void	onKeyRelease (Key::Enum key, const KeyModifiers &modifiers) override

void	onMouseMove (double x, double y, const KeyModifiers &modifiers) override

void	onMousePress (MouseButton::Enum button, double x, double y, const KeyModifiers &modifiers) override

void	onMouseRelease (MouseButton::Enum button, double x, double y, const KeyModifiers &modifiers) override

void	onMouseScroll (double dx, double dy, const KeyModifiers &modifiers) override

Public Member Functions inherited from vcl::DesktopTrackBall< float >
	DesktopTrackBall (uint width=1024, uint height=768)

bool	isDragging () const

MotionType	currentMotion () const

DirectionalLight< float >	light () const

const Camera< float > &	camera () const

Matrix44< float >	viewMatrix () const

Matrix44< float >	lightGizmoMatrix () const

Matrix44< float >	gizmoMatrix () const

Matrix44< float >	projectionMatrix () const

void	resetTrackBall ()

void	setTrackBall (const Point3< float > &center, float radius)

void	focus (const Point3< float > &center)

void	resizeViewer (uint w, uint h)

void	setKeyModifiers (KeyModifiers keys)

void	moveMouse (int x, int y)

void	pressMouse (MouseButton::Enum button)

void	releaseMouse (MouseButton::Enum button)

void	scroll (float pixelDeltaX, float pixelDeltaY)

void	keyPress (Key::Enum key)

void	keyRelease (Key::Enum key)

Public Member Functions inherited from vcl::EventDrawer< DerivedRenderApp >
	EventDrawer (uint, uint)

Public Member Functions inherited from vcl::PlainDrawer< DerivedRenderApp >
	PlainDrawer (uint, uint)

virtual void	onResize (uint width, uint height)

virtual void	onPostDraw ()

Private Types
using	ParentViewer = AbstractViewerDrawer< DerivedRenderApp >

using	DTB = ParentViewer::DTB

Private Member Functions
bool	isDirectionalLightVisible () const

void	setDirectionalLightVisibility (bool b)

void	updateDirectionalLight ()

void	updateDrawableTrackball ()

Private Attributes
CameraUniforms	mCameraUniforms

DirectionalLightUniforms	mDirectionalLightUniforms

DrawableAxis	mAxis

DrawableDirectionalLight	mDirectionalLight

DrawableTrackBall	mDrawTrackBall

bool	mStatsEnabled = false

Additional Inherited Members
Public Types inherited from vcl::DesktopTrackBall< float >
using	ScalarType = float

using	MatrixType = vcl::Matrix44< float >

using	TrackBallType = vcl::TrackBall< float >

Static Public Attributes inherited from vcl::DesktopTrackBall< float >
static const Point3< float >	UNIT_X

static const Point3< float >	UNIT_Y

Static Public Attributes inherited from vcl::EventDrawer< DerivedRenderApp >
static const bool	CAN_BLOCK_EVENT_PROPAGATION = false

Protected Types inherited from vcl::AbstractViewerDrawer< DerivedRenderApp >
using	DTB = vcl::DesktopTrackBall< float >

Protected Types inherited from vcl::PlainDrawer< DerivedRenderApp >
using	DRT = DerivedRenderApp

Protected Member Functions inherited from vcl::AbstractViewerDrawer< DerivedRenderApp >
void	readRequest (MouseButton::Enum button, double x, double y, const KeyModifiers &modifiers, bool homogeneousNDC=true)

Protected Member Functions inherited from vcl::PlainDrawer< DerivedRenderApp >
auto *	derived ()

const auto *	derived () const

Protected Attributes inherited from vcl::AbstractViewerDrawer< DerivedRenderApp >
std::shared_ptr< DrawableObjectVector >	mDrawList
