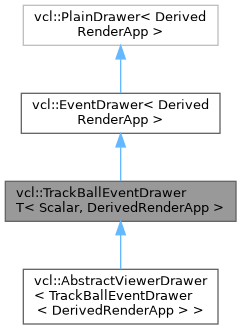

Inheritance diagram for vcl::TrackBallEventDrawerT< Scalar, DerivedRenderApp >:

[legend]

Public Types
using	MatrixType = Matrix44< Scalar >

using	PointType = Point3< Scalar >

using	ScalarType = Scalar

using	TrackBallType = vcl::TrackBall< Scalar >

Public Member Functions
const Camera< Scalar > &	camera () const

void	fitScene (const Point3< Scalar > &center, Scalar radius)

void	focus (const Point3< Scalar > &center)

Matrix44< Scalar >	gizmoMatrix () const

DirectionalLight< Scalar >	light () const

Matrix44< Scalar >	lightGizmoMatrix () const

void	onKeyPress (Key::Enum key, const KeyModifiers &modifiers) override

void	onKeyRelease (Key::Enum key, const KeyModifiers &modifiers) override

void	onMouseMove (double x, double y, const KeyModifiers &modifiers) override

void	onMousePress (MouseButton::Enum button, double x, double y, const KeyModifiers &modifiers) override

void	onMouseRelease (MouseButton::Enum button, double x, double y, const KeyModifiers &modifiers) override

void	onMouseScroll (double dx, double dy, const KeyModifiers &modifiers) override

void	onResize (unsigned int width, unsigned int height) override

Matrix44< Scalar >	projectionMatrix () const

void	reset ()

	TrackBallEventDrawerT (uint width=1024, uint height=768)

Matrix44< Scalar >	viewMatrix () const

Public Member Functions inherited from vcl::EventDrawer< DerivedRenderApp >
	EventDrawer (uint, uint)

virtual void	onMouseDoubleClick (MouseButton::Enum button, double x, double y, const KeyModifiers &modifiers)

Public Member Functions inherited from vcl::PlainDrawer< DerivedRenderApp >
virtual void	onDraw (uint viewId)

virtual void	onDrawContent (uint viewId)

virtual void	onDrawId (uint viewId)

virtual void	onInit (uint viewId)

virtual void	onPostDraw ()

virtual void	onResize (uint width, uint height)

	PlainDrawer (uint, uint)

Static Public Attributes
static const Point3< Scalar >	UNIT_X = {1, 0, 0}

static const Point3< Scalar >	UNIT_Y = {0, 1, 0}

Static Public Attributes inherited from vcl::EventDrawer< DerivedRenderApp >
static const bool	CAN_BLOCK_EVENT_PROPAGATION = false

Protected Member Functions
MotionType	currentMotion () const

bool	isDragging () const

Protected Member Functions inherited from vcl::PlainDrawer< DerivedRenderApp >
auto *	derived ()

const auto *	derived () const

Private Types
using	Axis = unsigned char

using	Base = EventDrawer< DerivedRenderApp >

using	MotionType = vcl::TrackBall< Scalar >::MotionType

Private Member Functions
void	keyPress (Key::Enum key)

void	keyRelease (Key::Enum key)

void	moveMouse (int x, int y)

void	pressMouse (MouseButton::Enum button)

void	releaseMouse (MouseButton::Enum button)

void	resizeViewer (uint w, uint h)

void	scroll (Scalar pixelDeltaX, Scalar pixelDeltaY)

void	setKeyModifiers (KeyModifiers keys)

Static Private Member Functions
static void	rotate (TrackBallType &t, const Point3< Scalar > &axis, Scalar angle=M_PI/6)

static void	rotateLight (TrackBallType &t, const Point3< Scalar > &axis, Scalar angle=M_PI/6)

static void	translate (TrackBallType &t, const Point3< Scalar > &translation)

Private Attributes
KeyModifiers	mCurrentKeyModifiers = {KeyModifier::NO_MODIFIER}

MouseButton::Enum	mCurrentMouseButton = MouseButton::NO_BUTTON

Point3< Scalar >	mDefaultTrackBallCenter

float	mDefaultTrackBallRadius = 1.0

std::map< std::pair< MouseButton::Enum, KeyModifiers >, MotionType >	mDragMotionMap

uint	mHeight = 768

std::map< std::pair< Key::Enum, KeyModifiers >, std::function< void(TrackBallType &t)> >	mKeyAtomicMap

std::map< std::pair< KeyModifiers, Axis >, MotionType >	mScrollAtomicMap

vcl::TrackBall< Scalar >	mTrackball

uint	mWidth = 1024

Static Private Attributes
static constexpr double	DISCRETE_ROTATION_STEP = M_PI_4 / 3.0

static constexpr double	DISCRETE_TRANSLATION_STEP = 0.1

Additional Inherited Members
Protected Types inherited from vcl::PlainDrawer< DerivedRenderApp >
using	DRA = DerivedRenderApp

Member Function Documentation

◆ onKeyPress()

template<typename Scalar , typename DerivedRenderApp >

void vcl::TrackBallEventDrawerT< Scalar, DerivedRenderApp >::onKeyPress	(	Key::Enum	key,
		const KeyModifiers &	modifiers
	)

inlineoverridevirtual

Reimplemented from vcl::EventDrawer< DerivedRenderApp >.

◆ onKeyRelease()

template<typename Scalar , typename DerivedRenderApp >

void vcl::TrackBallEventDrawerT< Scalar, DerivedRenderApp >::onKeyRelease	(	Key::Enum	key,
		const KeyModifiers &	modifiers
	)

inlineoverridevirtual

Reimplemented from vcl::EventDrawer< DerivedRenderApp >.

◆ onMouseMove()

template<typename Scalar , typename DerivedRenderApp >

void vcl::TrackBallEventDrawerT< Scalar, DerivedRenderApp >::onMouseMove	(	double	x,
		double	y,
		const KeyModifiers &	modifiers
	)

inlineoverridevirtual

Reimplemented from vcl::EventDrawer< DerivedRenderApp >.

◆ onMousePress()

template<typename Scalar , typename DerivedRenderApp >

void vcl::TrackBallEventDrawerT< Scalar, DerivedRenderApp >::onMousePress	(	MouseButton::Enum	button,
		double	x,
		double	y,
		const KeyModifiers &	modifiers
	)

inlineoverridevirtual

Reimplemented from vcl::EventDrawer< DerivedRenderApp >.

◆ onMouseRelease()

template<typename Scalar , typename DerivedRenderApp >

void vcl::TrackBallEventDrawerT< Scalar, DerivedRenderApp >::onMouseRelease	(	MouseButton::Enum	button,
		double	x,
		double	y,
		const KeyModifiers &	modifiers
	)

inlineoverridevirtual

Reimplemented from vcl::EventDrawer< DerivedRenderApp >.

◆ onMouseScroll()

template<typename Scalar , typename DerivedRenderApp >

void vcl::TrackBallEventDrawerT< Scalar, DerivedRenderApp >::onMouseScroll	(	double	dx,
		double	dy,
		const KeyModifiers &	modifiers
	)

inlineoverridevirtual

Reimplemented from vcl::EventDrawer< DerivedRenderApp >.

Member Data Documentation

◆ mDragMotionMap

template<typename Scalar , typename DerivedRenderApp >

std::map<std::pair<MouseButton::Enum, KeyModifiers>, MotionType> vcl::TrackBallEventDrawerT< Scalar, DerivedRenderApp >::mDragMotionMap

private

Initial value:

= {

            {{MouseButton::LEFT, {KeyModifier::NO_MODIFIER}},
             TrackBallType::ARC                                               },
            {{MouseButton::LEFT, {KeyModifier::CONTROL}}, TrackBallType::PAN  },
            {{MouseButton::LEFT, {KeyModifier::ALT}},     TrackBallType::ZMOVE},
            {{MouseButton::LEFT, {KeyModifier::SHIFT}},   TrackBallType::SCALE},
            {{MouseButton::MIDDLE, {KeyModifier::NO_MODIFIER}},
             TrackBallType::PAN                                               },
            {{MouseButton::MIDDLE, {KeyModifier::CONTROL}},
             TrackBallType::ROLL                                              },
            {{MouseButton::LEFT, {KeyModifier::SHIFT, KeyModifier::CONTROL}},
             TrackBallType::DIR_LIGHT_ARC                                     },

    }

◆ mScrollAtomicMap

template<typename Scalar , typename DerivedRenderApp >

std::map<std::pair<KeyModifiers, Axis>, MotionType> vcl::TrackBallEventDrawerT< Scalar, DerivedRenderApp >::mScrollAtomicMap

private

Initial value:

= {
        {{{KeyModifier::NO_MODIFIER}, 1}, TrackBallType::SCALE},
        {{{KeyModifier::CONTROL}, 1},     TrackBallType::ROLL },
        {{{KeyModifier::SHIFT}, 1},       TrackBallType::FOV  },



    }

The documentation for this class was generated from the following file:

vclib/render/include/vclib/render/drawers/trackball_event_drawer.h
